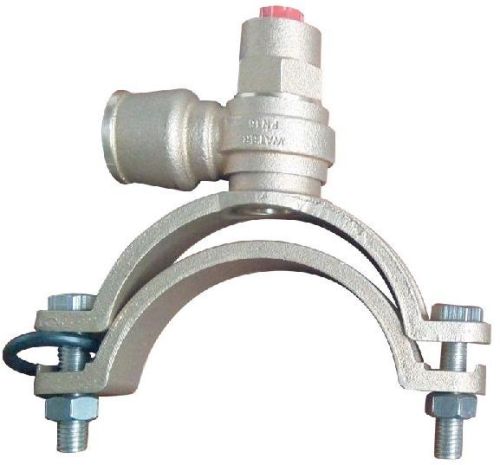

NRF004 Push Fit Gunmetal Self-Tapping Ferrule Straps

Self Tapping ferrule straps with top and bottom half made of cast gunmetal to BS1400 LG2 cast,with A2 grade stainless steel bolts and M12 nuts and EPDM rubber O ring seal under Boss.Top and bottom half to fit UPVC water mains with outside diameter 110/118 and 165/173mm,Ferrule stem in Bronze with integral aluminium bronze or stainless steel cutter,Acetal Banjo with 20 or 25mm push fit connection for HDPE pipe.Acetal top and EPDM sealing washers.
Push Fit Gunmetal Self-Tapping Ferrule Straps

• 110-118MM self-tapping ferrule straps
• 165-173MM self-tapping ferrule straps

Material :
Bronze Top saddle, bottom saddle, stainless steel bolts, nuts and washers and NBR or EPDM o-ring. Bronze can be C83600,LG2, B62 and C84400, etc. Testing Pressure:100% tested with 0.6MPa - 0.8MPa by air. Simple and quick installation can be made dry or under pressure

Technical Specification :

• Working pressure : 16bar (1.6mpa)
• Tested pressure : 24bars (2.4mpa)

We are in a position to accept order against customer's samples, specify design, specification.
