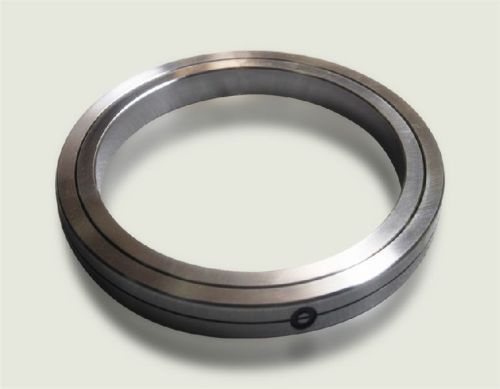

NRXT8013DDC8P5 THB Crossed Roller Bearings, Brand Name : RORKS

nrxt8013ddc8p5 n series crossed roller bearings for the rotating joints of robots-thb bearings

thb n series crossed roller bearings are thin-wall bearings consisting of an inner ring, a two-part outer ring, cylindrical rollers, and separators. The rollers are oriented at right angles to each other and kept apart by separators.

this kind of n series crossed roller bearings can sustain axial loads in both directions as well as radial loads and strong moment loads. And with their internal clearances factory-adjusted, it can be installed directly without troublesome shim adjustment. Mounting is facilitated by the outer ring parts being inseparable.

application:

the rotating joints of robots

indexing mechanisms

rotary tables

nrxt8013ddc8p5 technical specification:

bore diameter: 80mm

outer diameter: 110mm

width: 13mm

basic load ratings, dynamic: cr=20.5kn

basic load ratings, static: cor=32kn

mass: 0.38kg
