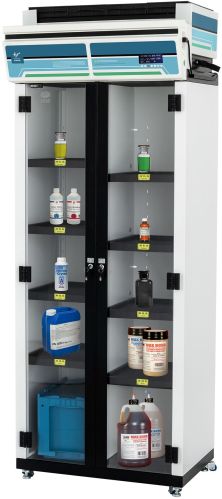

Doubke Door Ns Series Filtration Storage Cabinet

Basic parametersSize (mm): Inner: 1196*470*1752External: 1200*525*1960 ~2362Air Handling Capacity: 240m³/hCabinet volume: 0.91m³Storage capacity (500ml/1L): about 360/190 bottlesWater tray: 6L*Laminate load: 100kgAir exchange rate: 270 times/hourTotal power: 30 wattCurrent: 1.2 AVolume: ≤43 dbaVoltage/Frequency: 220 V/50 HzMaterial:Cabinet: 1.2 mm galvanized steel plate coated with acid and alkali resistant epoxy resin coating, load-bearing parts made of 3.0 mm thickened galvanized steelLamination and filter frame material: polyethylene (PP material)Door body: Aluminium alloy embedded with 5 mm high-quality transparent acrylic, with hidden permanent magnet magnetHydrochloric acid box: PP material to store strong acid (400*300*285 mm)Hydrochloric acid box storage capacity: 12 bottles/500 ml bottlesMagnetic label: chemical type identificationFront door panel: double door, size 600 width*1735 mm height, aluminium alloy four-sided inlaid high-quality acrylic door panel (total thickness 20 mm)Optional transparent door panel or anti-ultraviolet black door panel double door, and the two colour doors can be freely combined, there are different combination methods such as double doors and pull-out doorsDoor handles: 4 styles available (black, white, vertical, large handles.)
