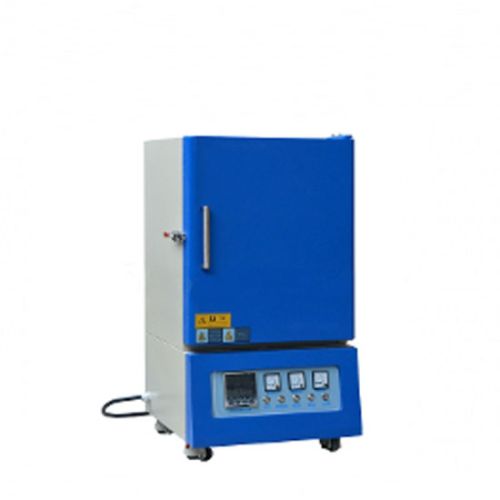

NST -1400 Degree C 40-Segment Muffle Furnace

₹ 3.18 Lakh - ₹ 8.69 Lakh / piece

Driven TypeElectric
Model NumberNST-1400 Muffle
Brand NameNST
CertificationISO 9001:2015
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Dadri, Gautam Buddha Nagar, Uttar Pradesh

4.3/5

Member Since 9 Years
Nature of Business Manufacturer
GST No. 09ARCPD4541L1ZS

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Model NumberNST-1400 Muffle
Brand NameNST
Driven TypeElectric
ConditionNew
CertificationISO 9001:2015
Country of Origin230V
Total CarbohydrateTwo Years Limited Warranty With Lifetime Technical Support
Min. Working TemperatureAmbient
Heating Element TypeSilicon Carbide (SiC)
ComplianceCE Certified
Electrical Requirements110-240VAC, 50/60Hz, Single Phase
Thermocouple TypeS
Max Heating / Cooling Rate< 15 Degree C (59 Degree F) / min
Temperature Precision+/- 1 Degree C
Max Vs Constant Working Temperature1400 Degree C (2552 Degree F) / 1300 Degree C (2372 Degree F)
Temperature ControllerShimaden FP93 (Japan) with 4 Programs and 40 Segments (ie. 4 X 10 Segments or 2 X 20 Segments)
Refractory LiningMitsubishi (Japan) High Quality 1600 Grade Fiber Alumina

1400°C 40-Segment Muffle Furnaces w/ PC Interface

NST-1400 Muffle muffle furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and silicon carbide (SiC) heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type S thermocouple.
CE compliant

Safety

Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Size Comparison

Chamber size (DxWxH)	6x6x6″	12x8x8″	16x12x12″
Usable chamber space (DxWxH)	4x5x5.5″	10x7x7.5″	14x11x11.5″
Chamber capacity (cu ft)	0.13	0.44	1.33
Installed heating element	4	8	12
Maximum output	3 kW	7 kW	13 kW
Unit/shipping dimensions (LxWxH)	20x19x32″/31x37x46″	22x25x34″/36x32x56″	26x28x39″/36x32x56″
