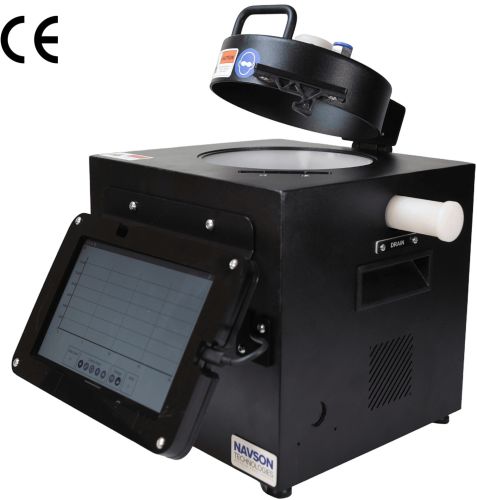

NTCR-08 Spin Coater Machine, Housing Material : Natural Polypropylene

Get Latest Price

Storage CapacityUnlimited Programs
Model NumberNTCR-08
Lid MaterialTranslucent Brown Acrylic Lid (compatible for Photo-resist Coating)
Housing MaterialNatural Polypropylene
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Navson Technologies Private Limited

T Nagar, Chennai, Tamil Nadu

View Number

Member Since 6 Years
Nature of Business Manufacturer
GST No. 33AAFCN3048K1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nitrogen PurgingPneumatic Connection in the Lid for Nitrogen Purging
Dimensions (L x B x H)264 x 264 x 350 mm (Without Drain & Display)
Power Requirement220V AC/50Hz; DC Adapter will be provided
Installation SupportReference Videos (Unpacking + Installation + Working Videos) and Online Support.
Add-Ons & AccessoriesOil-Free Vacuum Pump
Warranty12 Months Warranty With 3 Years Of Support
Country of OriginIndia
Model NumberNTCR-08
Speed50 – 12000 RPM
Acceleration1 – 8000 RPM/s
Drive SystemBLDC Motor
Standard Chucks1 Vacuum Chuck (10mm * 10mm to 2” Dia. Substrate)
DrainpipePolypropylene Pipe At the Side of Chamber
Housing MaterialNatural Polypropylene
Time per Program10000
User InterfaceSemi Integrated Android Based Touch Display
Program Steps10 Steps per Program (100 Steps Customizable)
Storage CapacityUnlimited Programs
Substrate Holding MechanismVacuum, Vacuum-less & Hybrid
Optional PurchaseCustomized Chuck (vacuum or Vacuum-less) to Hold Substrates from 5 to 150 Mm Dia.
Substrate Size5 to 150mm Diameter
Working Chamber MaterialSolid Natural Polypropylene
Working Chamber Size8” Diameter; 4” Height
Substrate Holding Vacuum650mm Hg Maximum
Vacuum Connections10mm PU hose – 2m length – default
Spirit LevelExternal
Safety FeatureLid Interlock Safety for Open Cover
Liquid DispensingCentre Hole in the Lid for Liquid Dispensing
Lid MaterialTranslucent Brown Acrylic Lid (compatible for Photo-resist Coating)

Engineered for FS 209 Class 100 (ISO Class 5) clean rooms with 100% Natural Polypropylene working chamber and chassis for zero metal contamination and ultra-low particle generation. Available in 8″ and 12″ (50 – 12,000 RPM) with ±1% RPM accuracy with multiple dispensing head options. Intuitive touchscreen UI with wireless mobile functionality offers real-time monitoring and unlimited recipe storage. Seamless, tool-less PP housing allows rapid wipe-down and resists aggressive solvents. Optional vacuum/vacuum-free chucks, Centering Tool, Liners, UV Curing, Infra-Red Heating, Wastage Collecting Containers and PC Software. Suitable for applications like Semiconductor lithography, MEMS & microsystems fabrication, OLED and display panel manufacturing, Optical coatings & sol-gel films.

Features:

Material & Chamber Construction

100% Polypropylene Construction
Fully non-metallic wetted path and chassis for zero metal contamination and ultra-low particle generation—ideal for FS 209 Class 100 (ISO Class 5) clean rooms
Chemical-resistant all-polypropylene chassis
Ø 8 ” Natural Polypropylene working chamber
Multiple dispensing ports (edge-bead ready)
Seamless polypropylene homopolymer molding—no joints, no dead zones, no leak paths

Substrate Handling & Processing Capability

Large-Format Processing
Accommodates up to 150 mm substrates, plus multiple smaller dies in one run to maximize throughput in R&D and pilot production.

Chemical Resistance & Material Compatibility

Wide Chemical Compatibility
1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis
Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more
Natural Polypropylene construction resists aggressive developers, strippers, acids, bases, and organic solvents without risk of leaching or corrosion—perfect for advanced resist, dielectric, and hybrid-material formulations.

Performance & Control

Precision Spin Control
50 – 12,000 RPM with ±1% RPM accuracy, programmable acceleration/deceleration, and ±1% thickness uniformity across the entire substrate.

Cleanroom & Glovebox Compatibility

Clean-Room-Grade Design
Seamless, rounded interior surfaces for rapid wipe-down; tool-less, snap-fit covers; sealed electronics bay; and no metal fasteners in the processing chamber.
Fits through Antechamber of glovebox*
Remote operation from outside glovebox to ensure a comfortable operation for the user
User Interface Tab can be fitted onto the Glove-Box wall (On request)

User Interface & Process Management
