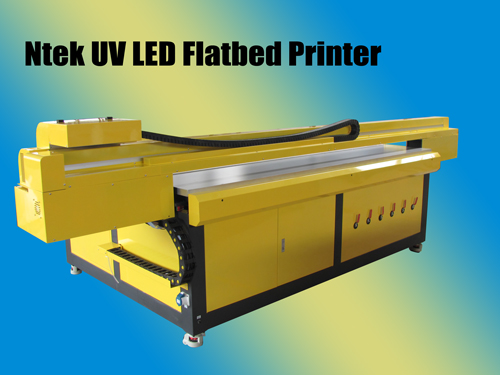

Ntek Digital Metal, Glass, Wood Printer

We are offering ntek digital metal, glass, wood printer etc.1. Epson dx5 printhead2.led uv lamp for ink curing3.low power with 2kw4.environmental and no-odor release
specification
product model uv2513
printhead technology drop-on demand piezo electric
printhead control printhead voltage is software adjustable
printhead type epson dx5 printhead
printhead number 1/2
ink characteristics uv curing ink
ink reservoirs continuous supply/1000ml per colour
led uv lamp more than 20000-hours life
color control icc based color,curves and density adjustment
printhead arrangement cmyk/cmyklclm
cmykw/cmyklclmw
cmyk*2/cmyklclm*2
cmykw*2
printhead cleaning system automatic cleaning system, automatic dry-preventing system
guide rail taiwan hiwin(thk optional)
working table vacuum sucking
pringting size uv2513:2500*1300cm
print interface usb2.0
media thickness less than 100mm(can be customized 200mm following)
printing resolution&speed 720x720dpi(4pass) 30sq.m/h(2 epson dx5 printhead)
720x1080dpi(6pass) 20sq.m/h(2 epson dx5 printhead)
1080x1440dpi(12pass) 6sq.m/h(2 epson dx5 printhead)
life of printed image 5 years(outdoor),10year(indoor)
file format tiff,jpeg,postscript,eps,pdf etc.
rip software photoprint 10 or ultraprint
power supply 220v 50/60hz(10%)
operation enviroment ambient temperature 20 to 30,relative humidity 40% to 60%
equipment dimension uv2513:3800(l)x1850(w)x1200(h)mm
equipment weight uv2513:500kg
warranty 1 year exclude the print head,ink filter and ink pump
after-sale service 24-hour on-line realtime technology service
