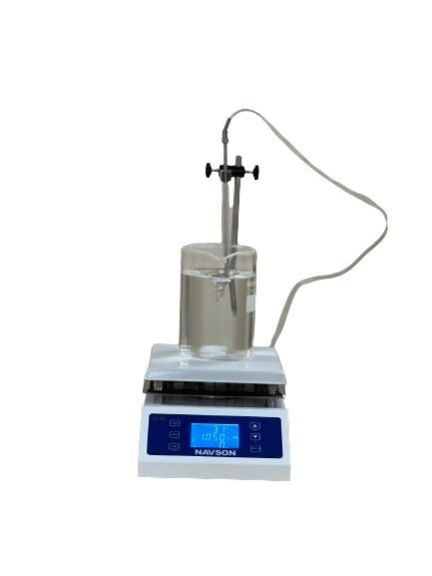

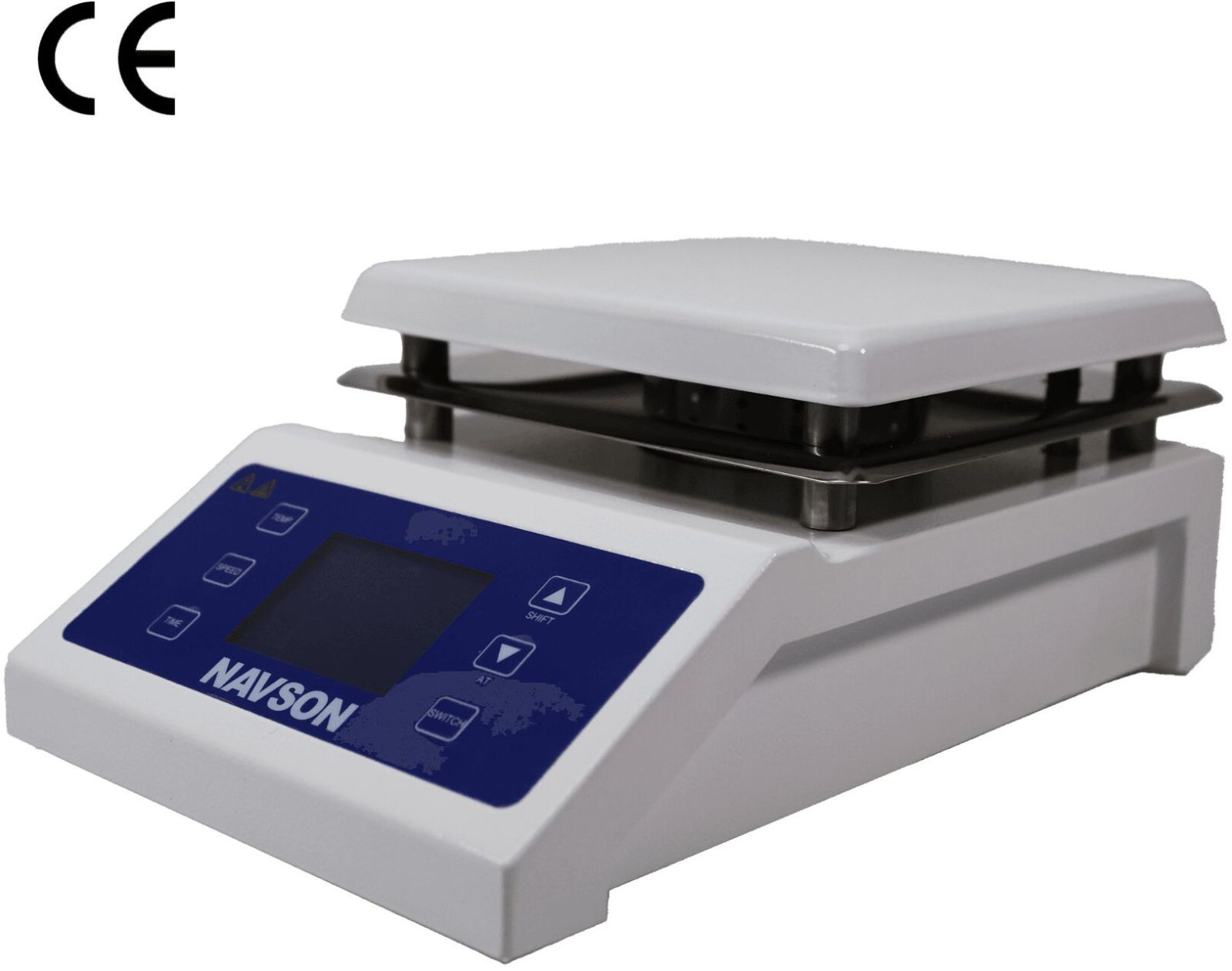

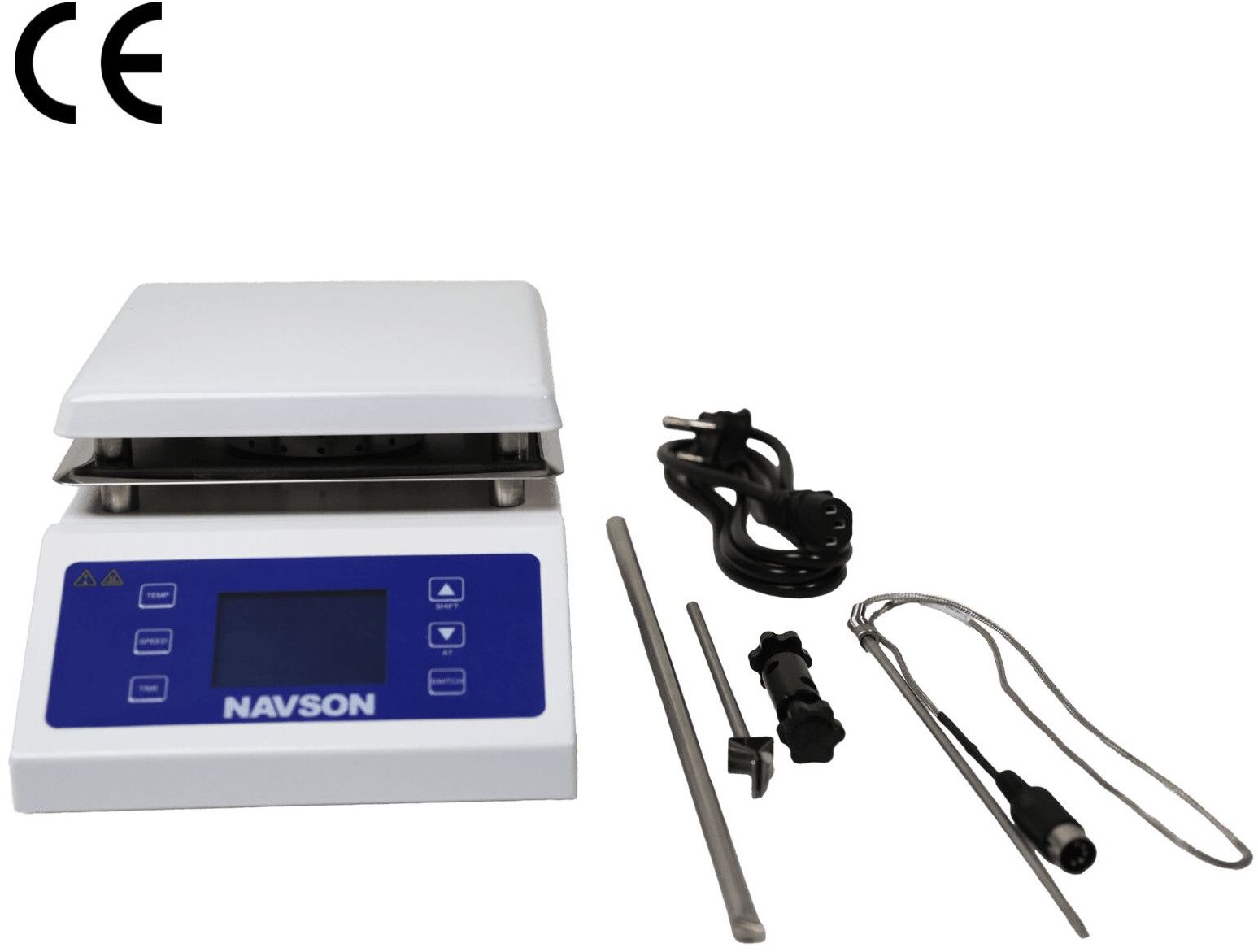

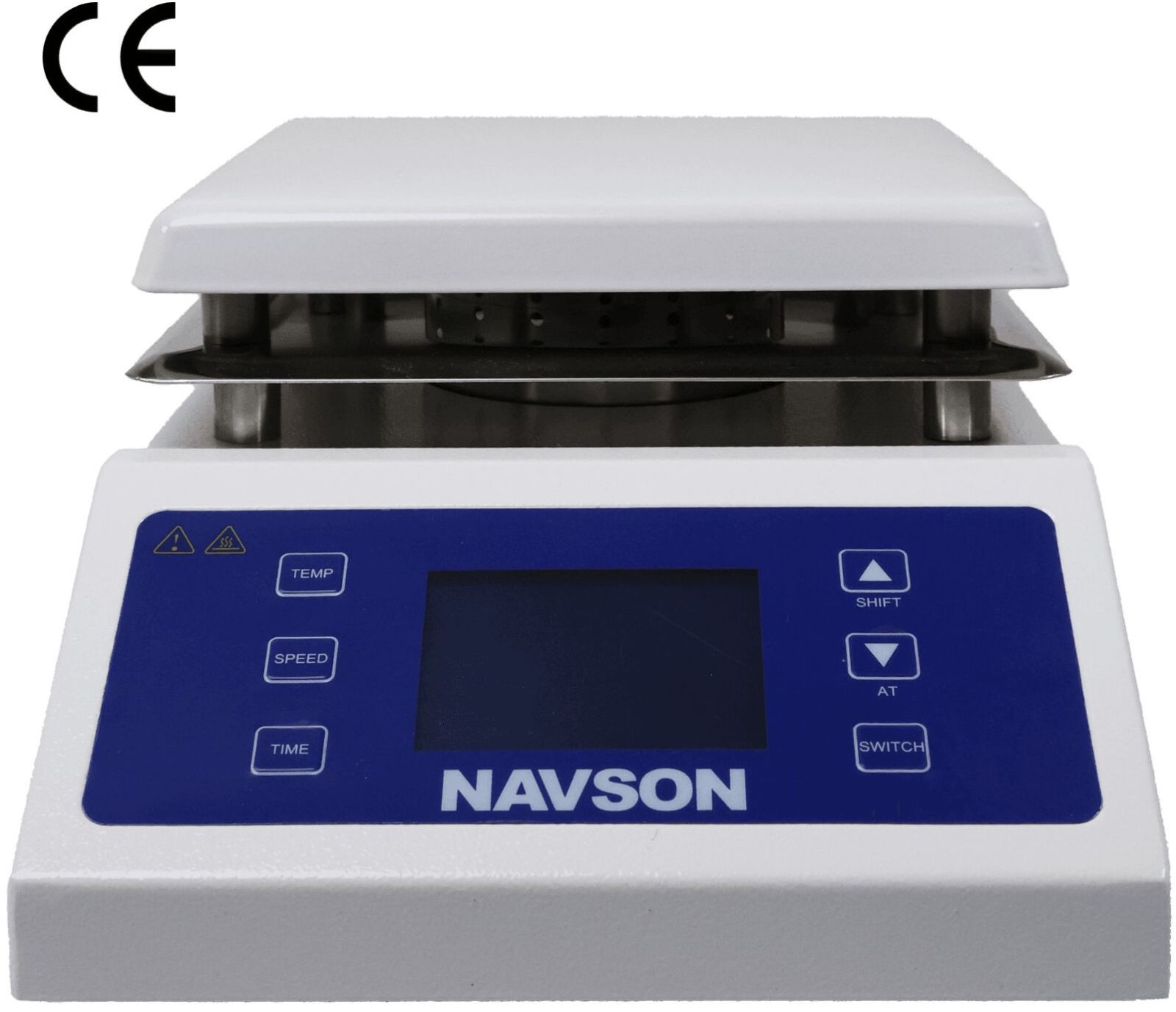

NTGK-380-05 Hotplate with Magnetic Stirrer

Get Latest Price

Temperature RangeAmbient - 380 ℃
Net Weight5 Kg
Motor Power20 W
Power Input220V AC/50Hz
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Navson Technologies Private Limited

T Nagar, Chennai, Tamil Nadu

View Number

Member Since 6 Years
Nature of Business Manufacturer
GST No. 33AAFCN3048K1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Speed Range200 - 2000 RPM
Temperature RangeAmbient - 380 ℃
System ExteriorPowder Coated MS Sheet Metal Enclosure
Heating PlateCeramic Coated Heating Plate
Driving ModeBLDC Motor
Motor Power20 W
Heating power0.6 KW
Magnetic Stirring Bar22 Mm PTFE Magnetic Bars
time range1 - 9999 Minutes (Hours)
Temperature SensorPT100
Heating Plate Size190 Mm X 190 Mm
Dimensions (L x B x H)320 X 190 X 125 Mm
Plate Load10 Kg
Net Weight5 Kg
Power Input220V AC/50Hz
Country of OriginIndia
Maximum Volume5L
BrandNavson Technologies

Compact benchtop design combines a 5 L corrosion-resistant ceramic-coated hot plate with an integrated magnetic stirrer for efficient sample mixing and heating. Digital PID temperature control (RT–350 °C) ensures ±1 °C stability, with programmable ramp and hold profiles for reproducible reactions. Adjustable stirring speeds (200–2000 RPM) and a heavy-duty drive magnet deliver uniform mixing from micro to multi-liter volumes. Safety features include independent over-temperature cutoff, splash guard lips, and chemical-resistant front panel. Ideal for organic synthesis, nanomaterial dispersion, buffer preparation, and general lab heating/stirring tasks.

Features:

Mixing Capacity & Performance

High-Capacity Mixing
• Maximum Volume: 5 L – ideal for medium-scale reactions and batch processes.
Versatile Speed Control
• Range: 200 – 2 000 RPM via a 20 W brushless DC motor
• Magnetic Stirring: 22 mm PTFE bars for reliable, contamination-free mixing

Heating & Temperature Control

Wide Temperature Envelope
• Operating Range: Ambient to 380 °C
• Heating Plate: 190 × 190 mm ceramic-coated surface, 0.6 kW power
• Sensor: Precision PT100 probe

Workflow Efficiency

Extended Run Times
• Timer: 1 – 9 999 minutes (up to 166.65 hours) for long-duration workflows

Build Quality & Load Capacity

Robust Construction
• Exterior: Powder-coated mild steel sheet-metal housing for chemical and wear resistance
• Plate Load Capacity: Supports up to 10 kg of apparatus or vessel

Design & Portability

Compact Footprint
• Dimensions (L × W × H): 320 x 190 x 125 mm – fits easily on standard lab benches
• Net Weight: 5 kg for effortless repositioning

Power Requirements

Standard Power Input
220 V AC, 50 Hz – compatible with global lab power supplies

High Temperature Magnetic Hotplate Stirrer

Features	Specifications	Specifications
	NTGK-550-30	NTGK-550-10
Work plate Dimension (W x D)	254 mm x 254 mm (10 inch)	184 mm x 184 mm (7 inch)
Work plate material	Glass ceramic	Glass ceramic
Motor type	BLDC Motor	Shaded pole motor
Stirring positions	1	1
Max. stirring quantity, [H2O]	30 L	10L
Max. magnetic bar length	80mm	80mm
Speed range	100-1500 RPM	100-1500 RPM
Speed display	Scale	Scale
Temperature display	LCD	LCD
Heating temperature range	Room Temp.- 500 °C (increment 1 °C)	Room Temp.- 500°C (increment 5°C)
Temperature control accuracy	±1 °C	±10°C
Overheating protection	540 °C	580°C
Temperature display accuracy	±0.1 °C	±1 °C
External temperature sensor	PT1000 (accuracy ±0.2)	PT1000 (accuracy ±0.2)
‘Hot’ warning	50°C	50°C
Data connector	SD Card	None
Protection class	IP21	IP21
Motor rating input	18W	15W
Motor rating output	10W	1.5W
Power	1400W	1030W
Heating output	1350W	1000W
Voltage	100-120/200-240V, 50/60Hz	100-120/200-240V, 50/60Hz
Dimension (W x D x H)	328 mm x 424 mm x 138 mm	215 x 360 x 112 mm
Weight	7.2kg	4.5kg
Permissible ambient temperature and humidity	5-40°C, 80%RH	5-40°C, 80%RH
