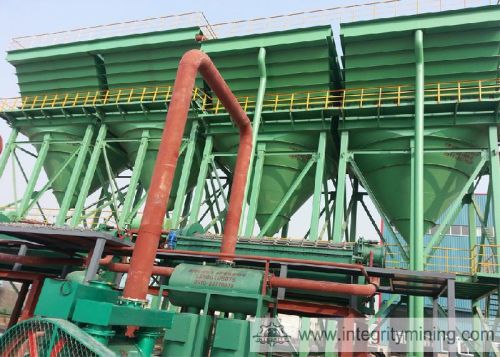

NXB Inclined Plates Thickener

NXB series inclined plate thickener is made of sheet steel for shell , the upper part is rhomboid, and the interior is installed with inclined parallel plates. The bottom part is shaped into conical works to collect the precipitate. The slurry flow through a narrow groove along the entire width of the box into the center of inclined plated during operation, and then flows upward through concentrated boards. Supernatant overflow discharge from the upper tank, and sediment will sliding down from the concentrate plate. Deposited into the lower pyramid part of this inclined plate thickener . And the sediment will discharged from the bottom discharge pipe . The inclined plates thickener has the same work principle with traditional thickener. Both are utilizing gravity sedimentation to separate the solid particles from the slurry, and its sedimentation occurs in the empty cavity of each inclined plates. The tilt between the plates spacing is small and easy to form streamline flow. And solid particles settling requires only a small distance to fall into the plate and then slipped along the inclined plate, so the effective size of the settlement is ten times than that of the original equipment area.
Main application : Our company designed NXB tilted plate thickener has fully absorbed advanced foreign technology and also considering the international mining processing characteristics. This new designed inclined plates thickener has been widely used both home and abroad. It is mainly used in mining and beneficiation of fine coal clarification, concentration, and can also be used in other solid-liquid separation industries.
Main features :

• the inclined plate sediment channel is applying an integrated model. Each settling channel has the same function like settling feed, grade concentrated, sand discharge and overflow, and all are the same structure size to ensure each classification concentrated channel works with stability and identity.
• The inclined plate
