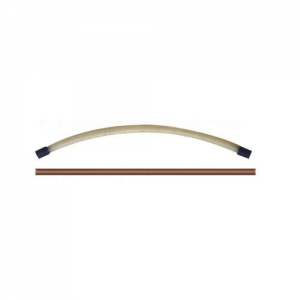

Nylon AndSteel Tubes

Technical Specification

Model

Description

ST-4

OD-4mm, Steel tube (Copper coated)

ST-6

OD-6mm, Steel tube (Copper coated)

ST-10

OD-1 Omm,Steel tube (Copper coated)

NT-4

OD-4mm, Nylon tube

NT-6

OD-6mm, Nylon tube

NT-10

OD-1 Omm, Nylon tube

Technical Specification

Models

Description

LRH-4-250

250mm long with 4mm steel ends

LRH-4-500

500mm long with 4mm steel ends

LRH-4-800

800mm long with 4mm steel ends

LRH-4-1000

1000mm long with 4mm steel ends

LRH-6-250

250mm long with 6mm steel ends

LRH-6-500

500mm long with 6mm steel ends

LRH-6-800

800mm long with 6mm steel ends

LRH-6-1000

1000mm long with 6mm steel ends

LRH-10-500

500mm long with 10mm steel ends

LRH-10-1000

1000mm long with 10mm steel ends

LRH-10-1500

1500mm long with 10mm steel ends

Manifold are required for mounting of oil distributers. These having two ports of 6mm OD tube and few side outlets. Oil metering cartridge are screwed directly on side outlets of manifolds.IWC Da Vinci Replica

Technical Specification

Models

Description

LM

-1

One way (for single metering cartridge D1 & D2)

LM

-2

Two way (for two metering cartridge D1 & D2)

LM

-3

Three way (for three metering cartridge D1 & D2)

LM

-4

Four way (for four metering cartridge D1 & D2)

LM

-5

Five way (for five metering cartridge D1 & D2)

LM

-6

Six way (for six metering cartridge D1 & 02)

LM

-8

Eight way (for eight metering cartridge D1 & D2)

LM

-9

Nine way (for nine metering cartridge D1 & D2)

LM

-10

Ten way (for ten metering cartridge D1 & D2)

LM

-1A

One way (for single metering cartridge D3)

LM

-2A

Two way (for two metering cartridge D3)

LM

-3A

Three way (for three metering cartridge D3)

LM

-4A

Four way (for four metering cartridge D3)

LM

-5A

Five way (for five metering cartridge D3)
