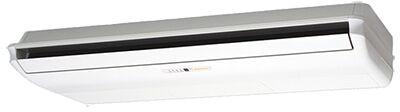

O GENERAL CEILING SUSPENDED SPLIT AIR CONDITIONERS

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

O General ceiling suspended air conditioner is a good choice for Office, Showroom, Industrial space. This type has powerful air flow, and thanks of installation on the ceiling and its air flippers the air distributing horizontally to ceiling, means air flow is not going down directly, what is more comfortable.

Company Information

Member Since 7 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model No.	Indoor/Outdoor units	ABG18/AOG18	ABG24/AOG24	ABG30/AOG30	ABG36/AOG36	ABG45/AOG45	ABG54/AOG54
Power Source	V/Ph/Hz	240-220/1/50	240-220/1/50	240-220/1/50	415-380/3/50	415-380/3/50	415-380/3/50
Capacity	BTU	18,400-18,100	23,600-23,200	30,000-29,400	35,800-35,200	43,300-42,300	48,000-47,400
Input Power	kW	2.15-2.05	2.85-2.75	3.30-3.20	4.10-4.00	4.45-4.35	5.25-5.20
Current	A	9.2-9.4	13.6-13.3	14.5-14.7	7.0-7.0	8.3-8.1	8.9-9.0
EER	kW/kW	2.51-2.59	2.42-2.47	2.67-2.69	2.56-2.58	2.85-2.85	2.69-2.67
Air Flow rate	CFM \| m3/h	470 \| 800	529 \| 900	747 \| 1270	976 \| 1660	1088 \| 1850	1236 \| 2100
Net Dimention (indoor), Weight	HxWxD (mm) \| kg	199x990x655 \| 30	199x990x655 \| 30	240x1,660x700 \| 48	240x1,660x700 \| 48	240x1,660x700 \| 48	240x1,660x700 \| 48
Net Dimention (outdoor), Weight	HxWxD (mm) \| kg	643x840x336 \| 66	643x840x336 \| 68	900x900x350 \| 79	1152x940x370 \| 94	1152x940x370 \| 102	1152x940x370 \| 112
Refrigerant		R22	R22	R22	R22	R22	R22
