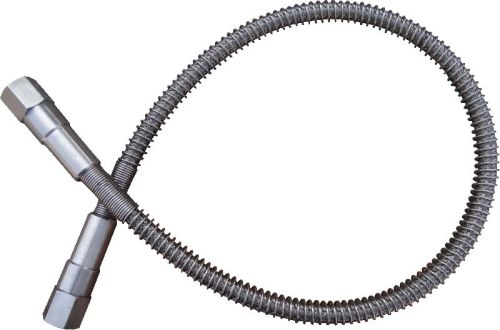

SS -304 Double Wire Braided SS 316 Corrugated Flexible Hose with SS Spring having SS 304 Nut / Nipple on both sides.

These are ideal for connecting Gas Manifold System with Gas Cylinders.

Key Features:

# High physical strength combined with light weight.

# Overcomes all the limitations of Copper Tailpipes and Teflon Hoses.

# Good corrosion resistance.

# Resistance to fire, moisture, abrasion and penetration.

# Compensates for intermittent or constant movement

# A flexible and quick alternative for rigid piping in difficult location.

# Compensates for thermal expansion or contraction of piping.

# Available in sizes: 1000 mm, 2000 mm, 3000 mm, 6000 mm.

# Size can be customised as per requirement.

Technical Specifications –

# Maximum Working Pressure – 240 Bar.

# Operating Temperature Range: -40˚C to 74˚C

# Inlet and Outlet Connection – As per Requirement.

# Hydraulic Test Pressure – 300 Bar.

# Pneumatic Tested Pressure – He gas at 240 Bar.

Main Component Details –

# Inner Coil – SS 316 Grade.

# Outer Coil – SS 304 Grade.

# Spring – SS 304 Grade.

# Connectors – SS 304 Grade.
