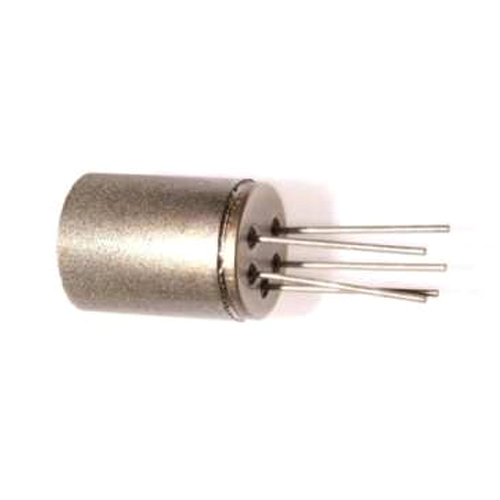

O2S-FR-T3 Miniature Mounted Zirconia Oxygen Sensor, Brand Name : SST

Zirconia o2 sensors
miniature series
features
 zirconium dioxide (zro 2 ) sensing elements
 long life, non-depleting technology
 integral heating element
 high accuracy
 requires an external interface board to operate
benefits
 no reference gas required
 no need for temperature stabilisation
 pcb mountable
technical specifications
heater voltage
standard response sensor 4v dc +- 0.1v dc (1.7a)
standby 1.65v dc (0.7a)
fast response sensor 4.35v dc +- 0.1v dc (1.85a)
standby 2v dc (0.85a)
pump impedance at 700°c
permissible gas temperature -100'c to +250'c
gas flow rate 0 - 10 ms
repetitive permissible acceleration 5g
incidental permissible acceleration 30g
output values
oxygen pressure range 2mbar - 3bar max
accuracy 5mbar max
internal operational temperature 700'c
response time (10 - 90% step)
standard response sensor .
