Ob-itpf Optical Barrier

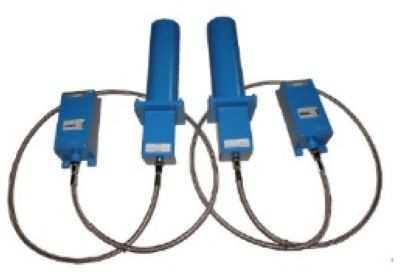

• Logika Technologies infrared laser optical barrier, Model OB-ITPF, is designed for automation of steel, aluminum, and other production lines characterized as having extreme industrial environments. With its high-output pulse laser, the OB-ITPF is particularly well suited to detect billets and slabs inside reheat furnaces. It exhibits strong anti-jamming capabilities in high radiation environments and performs well around fog, smoke, dust, and water spray. The sensor makes use of an emitter and receiver set with the IP66 electronics coupled to the robust steel and glass lens assembly via high temperature fiber optics. The fiber allows the electronics to be positioned away from the heat source without need for additional air purge or water cooling, thus allowing for simple installation, long service life, and maintenance free operation.

• Thin Slab / Tunnel Furnace
• Reheat Furnace
• Furnace Entrance
• Furnace Exit
• Galvanizing / Annealing Furnace

• Signal strength and detection indicators to aid in easy alignment
• Fiber optic feature allows for remote sensor installation
• High power laser penetrates harsh environments, is insensitive to ambient light and radiation from furnaces, and is ideal for long distances.
• Remote optical heads are connected to their electronics components through fiber optic cable protecting the electronics from harsh environments.
• Designed for the most difficult environments
• For targets >70mm in diameter
• Detection range up to 50 m.
• Access to an experienced applications engineering support team (included with all Logika products)
• Visible (green) Laser Alignment Tool
• Custom length Power and Fibre Optic cables

Dimensions:
