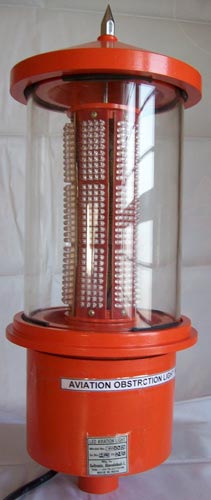

Obstruction Warning Lights

Our company is instrumental in manufacturing, exporting, and supplying the wide range of obstruction warning lights. The obstruction warning lights which we provide to the clients is extensively demanded to be used on mobile tower, high risk building, industrial chimney, etc. These medium intensity obstruction warning lights are made in compliance with the industrial quality standards, and therefore are of reliable nature. Clients can avail these obstruction warning lights from us in qualitative packaging, that too at affordable rates. illumination

• lux level at 1meter > 2000 lux
• optical lens arrangement to provide 360 illumination by high intensity white leds
• special design for over 10 year life
• long life led @ 1,00,000 hours (12hr/day = 22 yrs)

• input voltage : 180 – 280v ac (50/60hz) or 40 – 58v dc
• power consumption :< 55 watt
• no of led : 720nos
• current through leds under all conditions 80ma + 20 %
• voltage across leds under all conditions 2v + 10 %
• operating temperature range : -100c to + 600c
• flashing : 20 to 60 fpm
• photocell auto on/off ( internal fitted ) no extra cost

• sealed water-proof unit conforming to ip – 65 standards
• casing made of lm6 aluminum alloy, painted with uv paint for atmospheric protection
• uv stabilized polycarbonate lens to protect the leds
• bird – spike to keep away the droppings
• weight 5 kg. (approx)
• fire retardant
• withstands impact of up to 5j

• no replacement, no maintenance
• low power consumption : huge savings on electricity bills
• failure of single led does not affect performance & delivers constant illumination
• stand alone operation : optimized for solar based, stand – alone applications. It can also be installedin remote areas where there is no manpower and electricity
• quality control : geltronix employs the use of leds & other components manufactured by global market leaders.
• warranty for two years
