Contact Supplier3G network with stable reliability, is what brings GPS 3G tracker OCT630.
OCT630 includes more new features and 3G connectivity with different frequency. With stable and fast data transmission capacity, OCT630 make you ability to do tracking in the coverage gaps caused by the phase out of 2G. Further more, GPS tracker with 3g network support wider range of coverage, it can work well for those in remote, weak signal areas.
This 3g tracker is ideal for car tracking, fleet management, access tracking, etc. it allows you to set schedule for all the cars. And multiple alerts like engine on alert, idle alert remind you to pay attention to car security and maintenance. You also can get reminding when time to do maintenance.
OCT630 has extra accessories added such as camera, fuel sensor, RFID, Bluetooth among others
Core Features of RFID Vehicle tracking device:

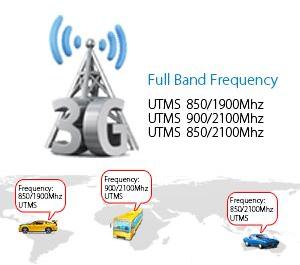

Fleet tracking with 3G network : Track all your cars with 3G, make a new level of GPS tracking, faster, reliable, support full band frequency (UTMS 850/1900Mhz, 900/2100Mhz, 850/2100Mhz), tracking around the most areas with 3G network.
Expanded territory coverage, auto switch between 2G and 3G : Support expanded territory coverage, it is possible to track those in remote areas, and auto switch between 2G and 3G. Keep car tracking in different situations.
High capacity MCU : Support high capacity MCU (frequency: 72Mhz, Flash memory: 128KB), GPS tracker works more stable, and more functions can be added to the tracker, make your car be more safety
MAIN FEATURES
Real time tracking : Tracking your car any time, you can get location info via SMS, online tracking system, tracking APPs.
Multiple alerts for car safety : Provide multiple alerts include SOS alert, movement alert, speed alert, fence alert, to notify car owner in time, and protect the car.
Detail driving reports : Show driving detail in some period of driving, it allows manager to idenity driver performance and bad driving events.
Working time setting : Set working time for each car. If any car is on at non working time, alert of illegeal drving will send to you in time.
Fuel Monitoring (option) : Get daily fuel consumption of each car, fuel graph will show details
Stop car remotely : Stop fuel supply remotely once the car is stolen. The car will stop slowly, not crashing.
| Dimension | 60mmx85mmx30mm |
|---|---|
| Charging voltage | +9V – +35V / 1.5A |
| Back up battery | 550mAh lithium-ion battery |
| Humidity | 5%–95% |
| LED indicator | 2 indicators show GSM/GPS status |
| Channels | 20 channel all-in-view tracking |
| Velocity Accuracy | 0.1 m/s |
| Frequency | 850/1900Mhz,900/2100Mhz UMTS | 850/900/1800/1900Mhz GSM |
| Weight | 145g |
| GPS Chipset | Latest GPS SIRF-Star III chipset |
| Operating temp | -20°C to 55°C |
| GPS Sensitivity | 158Db |
| GPS Frequency | L1, 1575.42 MHz |
| Interface | 2 input and 1 output |
| Position Accuracy | 10 m, 2D RMS |
