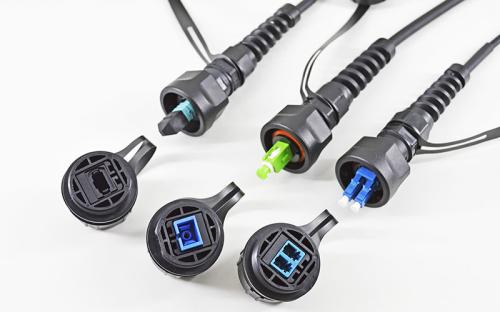

ODVA CPRI Cable Assembly, Brand Name : Adela, Packaging Type : Black

Get Latest Price

MOQ1 Piece(s)
Brand NameAdela
ApplicationCommunication
Operating Temperature0°C ~ +70°C
Warranty1 Year
ConnectorSC Connector
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shenzhen Adela Technology Co.,Ltd

Shenzhen

View Number

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameAdela
ApplicationCommunication
Operating Temperature0°C ~ +70°C
ConnectorSC Connector
Warranty1 Year

This ODVA outdoor waterproof connector attaches to adapter on panel of RRH. The common SC simplex/LC duplex/MPO connector inside allows easier testing and cleaning. There are two types of connector plugs available: threaded and easy-connect bayonet.
Features :

Meet standard of Telcordia GR-326-CORE
Good performance of insert-pluck repeat ability and good interchangeability
IP68 rated to ensure protection from dust and water immersion
Flame retardant materials per UL-94-0
Bayonet-style mechanical lock
Temperature range of-40^oC-85^oC

Applications :

Harsh environments where chemicals,corrosive gases and liquids are commonplace
Telecommunication/CATV Systems
FTTX and Special environmental
Mobile routers and internet hardware

Technical Specification

Parameters		Standard Fiber Cable Assemblies
Connector	Side-A	Compact RRU/BBU Helix cover Connector
Connector	Side-B	DLC(duplex LC),SC,ST,FC,MPO/MTP
Fiber count		2core or 4......24
Fiber Type		SM(G.652D/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials		LSZH/OFNR/PVC/PE
Ferrule Materials		Ceramic
Testing Wavelengths		1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB) TIA/EIA-455-107		≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107		≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchange ability		≤ 0.2dB
Cable Assemblies		Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (°C)		-14~ + 85
Storage Temperature (°C)		-40 ~ +85
