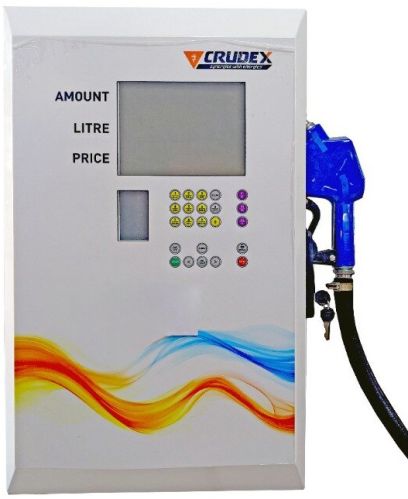

Automatic Offline Diesel Exhaust Fluid Dispenser, Voltage : 230 V

Hardware Features:

• Flow Rate: 10–40 LPM

• Working Temperature: -10°C to +55°C

• Relative Humidity: 5% to 95%

• Voltage: 180V–300V AC (Single Phase, 50/60 Hz)

• Flow Meter Accuracy: ±0.5%

• Display: Multi-functional 5x4/6x6 backlit display with user interface

• GLCD: Yes

• Flow Control: Single-stage flow control

• Hose Pipe: 4-meter length

• Thermal Printer: Integrated thermal printer for transaction receipts

• Dispensing Modes: Manual, Fixed, and Preset modes

• Local Memory Backup: Up to 5000 transactions

• Totalizer: Re-settable and non-re-settable options

• Calibration: Manual and Preset calibration options

Key Features & Options:

• Inline Fluid Concentration Sensor: Not available

• Boot-Up Logs: Logs for power loss and frequent restarts (Not available)

• Audio Speaker Output: Not available

• Surge Protection & Power Control: Not available

• Security Box (Basebox-Secure/Ultra Box-Secure): Not available

• Integrated Tank Level Sensor: Not available

• Inline Dual Quality Sensors: Not available for DEF quality control

• Automated Redundancy: Not available for zero downtime of dispensing components

• Power Conditioning: Not available for advanced surge protection, isolation transformers, etc.

Software Features:

• Wi-Fi Integration: Yes

• GSM Integration: Not available

• Shift Payment Control: Not available for RFID or membership-based payment systems

• Reports & Logs:

  • Shift, Error, and Calibration logs

  • Multiple report formats (XLS, PDF)

  • Transactions log

• Memory Backup: 15 days

• Remote Locking: Not available for unauthorized access

• Wireless Firmware Upgrade: Available

• ERP Integration: Not available

• SMS Integration: Yes

• Payment Gateway Integration: Not available

Accessories:

• Single Nozzle: Yes

• Climate Control Unit (Heater & Cooler): Not available

• Dual Inline Filters with Manual Switchover: Available as an optional accessory

• Extended Warranty: Available on request (5 years)

Summary of Limitations (Compared to IIoT or Smart Models):

• Lack of IoT Features: No remote monitoring or connectivity via GSM, Wi-Fi, or other advanced communication protocols.

• Limited Security Features: No advanced security options like OTP-based locks or real-time temperature and humidity tracking.

• Basic Flow Control: Only a single-stage flow control, compared to two-stage control in higher-end models.

• No Payment Gateway: Does not support integrated payment methods or customer wallet systems.

• No Real-Time Alerts: Limited to local memory for backup and no maintenance alerts through IoT integration.
