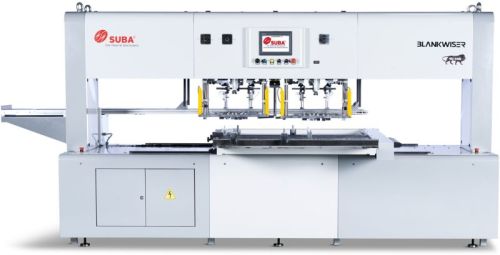

Offline Stripping Blanking Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Pile Loading & Navigation Pile loaded in carrier - no bottom scratches or contamination No need to clean table between blanking cycles High end servo motors and drives Position accuracy -....

View More Details

Send Enquiry

Company Information

Subasolutions

Vandalur, Chennai, Tamil Nadu

View Number

Member Since 3 Years
Nature of Business Trader

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Pile Loading & Navigation

Pile loaded in carrier - no bottom scratches or contamination
No need to clean table between blanking cycles
High end servo motors and drives
Position accuracy - 10 microns
Sensor for operator safety Customized Parking Position for operation comfort and increase in productivity.
Larger carrier size (1060 1060mm) for versatile sheet loading.
Equipped with THK Ballscrews and Linear Guides for precision performance
Blanking Station
Double head blanking
Balanced hydraulic system with three cylinders in bottom punch
Optional 3rd head for window hole remover
Safety mechanism for operator
Waste Removal
2 waste slopes ensures undisturbed waste removal
Ensures no requirement of table cleaning between blanking cycles
Touch Screen
Ease of operations
Easy programming
Memory for 500 programs

Electrical
Branded electrical and electronic components for reliable performance.
Motorized Pile Lifter (Optional)
Sensor based pile auto up down movement
Reduces operator fatigue
Can be used on multiple machines for material handling.

Model	Blankwiser 106	Blankwiser – XL
Max. Sheet size (mm)	1060 x 1060	1080×780
Min. Sheet size (mm)	300 x 300	450×320
Max. Blank size (mm)	350 x 468	500×700
Min. Blank size (mm)	30 x 30	30×30
Optional: RPA – Robotic pickup arm (min/max) with conveyor	50 x 50-250 x 280	N/A
Optional: W – window hole remover (min to max) mm	Min 15x15mm Max 100x150mm	N/A
Pile of paper high (mm)	50-85mm	40-120mm
Strokes/min *Output depends on sheet thickness, no. of ups/carton size etc.,	15-20	15-20
Max. work stress (tons)	2.5	2.5
Power (kw)	10	7
Compressed air pressure requirement (bar) Compressed air pressure requirement with conveyor (bar)	6 8	8
Machine Size (lwh) mm Machine size with conveyor (lwh) mm	2700 x 3400 x 2200 2700 x 4400 x 2200	3500x1800x1900mm
Machine with working suggested area (lwh) mm Machine with working suggested area with conveyor (lwh) mm	4400 x 4800 x 2500 4400 x 5400 x 2500	5700 * 4200 * 2500
Weight (kgs) Weight with conveyor (kgs)	2000 2500	2000
Make ready time (“subject to operator skill and job type)	15 to 30 min
