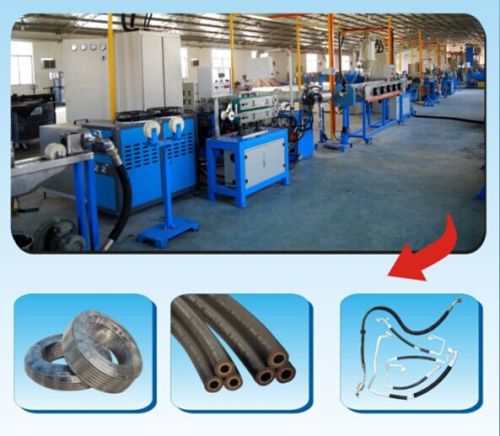

Oil Brake Rubber Tube Production Line

We are offering oil brake rubber tube production line.
machine 90 outer rubber extruder
1 model e90-06(e90-jst-07-00e90-dz-03-00)
2 usage extruding and mixing rubber and plasticizing, using extrusion molding with the head forming the rubber products.
3 size 2700×1200×1620(l*w*h)
4 extrusion system
5 feeding way side roller through a screw transmission power, feeding activly
6 feeding structure side roller gear and screw gear meshing transmission, with automatic lubricating device.
7 screw material 38grmoaca
8 screw hardness hrc65-68
9 steel bushing hardness hrc65-70
10 depth of azotization 0.4—0.7mm
11 screw structure with the exhaust slot, good vacuum performance
12 "pressure control
" with pressure sensors, pressure adjustable protection value is 0 to 35 mpa
13 extruder fixed according to the situation ,can be straight, rotating and static way
14 ld ratio 16：1
15 screw diameter 90mm
16 "screw speed
" 0-55rmin
17 "maximum output
" about 280kgh
18 temperature control system
19 heating sectionpower 3kw×4
20 cooling section number 1piece （side roller）
21 vacuum power 1.5kw
22 temp control mode electromagnetic valve automatic control of heating and cooling
23 circulating water pump brand wilo
24 cooling water pressure 0.15-2kgc㎡
25 temp accuracy ±1℃
26 driving system
27 screw connected with reducer using spline connection
28 motor and reducer drive use 5 root 5 v belt transmission
29 hard tooth decelerate model zlyj250-20-1
30 motor power 55kw
31 total power 80kw
32 "speed adjustment mode
" frequency control
