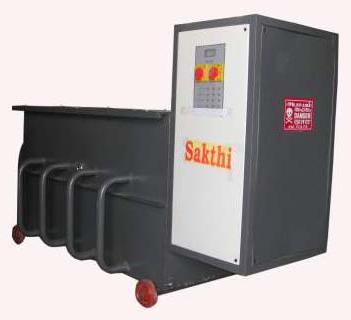

SAKTHI AUTOMATION Oil Cooled Servo Stabilizer

We manufacture and supply oil cooled servo stabilizer that are very effective in controlling power and voltage. Our oil cooled servo stabilizers are designed and supervised by a team of qualified engineers to give the best output. These stabilizers work well under high voltage fluctuations and helps in obtaining single output.



features and specifications:-



range

300 v – 460 v ac 50 hz 3 ph

other input ranges

245 v- 460 v ac 3ph

340 v- 460 v ac 3ph

360 v- 460 v ac 3ph

other ranges as per customer requirement





47hz to 53 hz

output voltage

380 v 400 v 415 v ac 3ph 50 hz

system

unbalanced 4 wire : r y b n

connections

star

output voltage adjustable

380 v to 415 v ac in 3ph

220 v to 240 v ac in 1ph

output voltage regulation

± 1%

over load capacity

120.00%

correction rate

15 v 20 v 35 v sec-1ph

25 v 35 v 60 v sec-3ph

110vsec for d.c. Motor controlled

waveform distortion

nil

output waveform

true reproduction of input

insulation

class 'b'

short ckt period & percentage

300 % for 250 m. Sec.

Normal operating temperature

0ºc to 45ºc

climatic conditions

90 % rh. Max. Non-condensing at 35º c

mode of system

fully automatic manual

system construction

as per is : 9815 of 1994
