Oil Free Screw Air Compressor (TP160BV/TP200BV/TP250BV) for Industrial

Get Latest Price

ApplicationIndustrial
Number Of FlowerOil-free Screw Air Compressor
ProductAir Compressor
Working Pressure1 to 4 bar
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Taizhou Toplong Electrical & Mechanical Co. Ltd.

Zhejiang Province

View Number

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerOil-free Screw Air Compressor
ApplicationIndustrial
IndustryPharmaceuticals And Food
ProductAir Compressor
Working Pressure1 to 4 bar
Motor Power30 to 522 kW
Pressure Fluctuation Range0.01Mpa

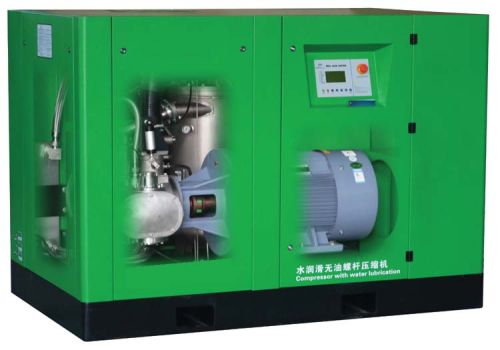

Oil Free Screw Air Compressor (TP160BV/TP200BV/TP250BV) is a 100% oil-free compressor which has been especially made for the industries of pharmaceuticals and food. It brings drastic savings in gas consumption. It changes its frequency as per gas consumption and automatically adjusts the compressor speed to avoid the frequent loading and unloading which aids the purpose of saving. The screw compressor uses a variable frequency motor speed range. It is well known for its reliability and stability.

Why inverter screw compressor

First, energy saving, on many occasions, a big change in gas consumption, frequency screw compressor according to changes in gas consumption, automatically adjust the compressor speed to avoid the frequent loading and unloading, so as to achieve the purpose of saving.
Second, the precise exhaust pressure, flow range, TP / V inverter water lubricated screw compressor pressure fluctuation range can reach 0.01Mpa.
Third, avoid current peaks, start TP / V drive more smoothly than commonly known as soft start, completely avoid the current peak, without any impact on the grid.
Four, TP / V series inverter water lubrication oil-free screw compressor has a working frequency switching function. According to the size of the free choice of gas consumption, electricity costs to a minimum.
TP screw compressor using variable frequency motor speed range is not, low frequency torque, good stability.
TP screw compressors using special inverter compressor, high reliability and long service life

Specifications

Model	Maximum work pressure	FAD	Motor power	Noise	Weight	Pipe diameters of cooling water inlet and outlet	Quantily of cooling water	Dimension	Air outlet
							(32°) Water entering32°	L×W×H
	Mpa	m³/min	kW	dB(A)	Kg		T/n	mm
TP08BV(F)	0.8	0.45~1.15	7.5	58	637	3/4″	2	1550×775×1445	3/4″
	1	0.41~1.02
TP11BV(F)	0.8	0.62~1.55	11	58	657	3/4″	2.5	1550×775×1445	3/4″
	1	0.53~1.32
	1.25	0.48~1.02
TP15BV(F)	0.8	0.96~2.40	15	63	907	1″	3.5	1900×1000×1635	1″
	1	0.85~2.12
	1.25	0.64~1.61
TP18BV(F)	0.8	1.24~3.10	18.5	65	993	1″	4	1900×1000×1635	1″
	1	1.05~2.62
	1.25	0.85~2.13
TP22BV(F)	0.8	1.40~3.50	22	65	1023	1″	5	1900×1000×1635	1″
	1	1.25~3.13
	1.25	1.04~2.61
TP30BV	0.8	2.00~5.00	30	66	1300	1 1/4″	7	1900×1050×1430	1 1/2″
	1	1.68~4.20
	1.25	1.52~3.81
TP37BV	0.8	2.44~6.10	37	67	1320	1 1/4″	9	1900×1050×1430	1 1/2″
	1	2.09~5.22
	1.25	1.92~4.81
TP45BV	0.8	2.92~7.30	45	68	1569	1 1/2″	10	2200×1350×1530	2″
	1	2.45~6.13
	1.25	2.26~5.65
TP55BV	0.8	3.84~9.60	55	70	1665	1 1/2″	12	2200×1350×1530	2″
	1	3.44~8.60
	1.25	2.97~7.42
TP75BV	0.8	5.00~12.50	75	73	1889	1 1/2″	18	2200×1350×1530	2″
	1	4.57~11.42
	1.25	3.93~9.83
TP90BV	0.8	6.52~16.30	90	73	2356	2″	20	2550×1400×1605	2.5″
	1	5.81~14.52
	1.25	4.92~12.30
TP110BV	0.8	7.76~19.40	110	78	2376	2″	24	2550×1400×1605	2.5″
	1	6.76~16.90
	1.25	6.04~15.10
TP132BV	0.8	8.88~22.21	132	78	2522	2″	30	2550×1400×1605	2 1/2″
	1	8.15~20.38
	1.25	7.31~18.29
TP160BV	0.8	11.54~28.85	160	78	3810	2 1/2″	35	3100×1700×2090	3″
	1	9.81~24.52
	1.25	8.87~22.17
TP200BV	0.8	14.65~36.63	200	78	3910	3″	43	3100×1700×2090	4″
	1	13.10~32.70
	1.25	11.09~27.72
TP250BV	0.8	17.15~42.88	250	78	4120	3″	53	3100×1700×2090	4″
	1	15.60~39.00
	1.25	13.87~34.64
