Oil & Gas Line Pipes (API 5L PSL1&PSL2)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

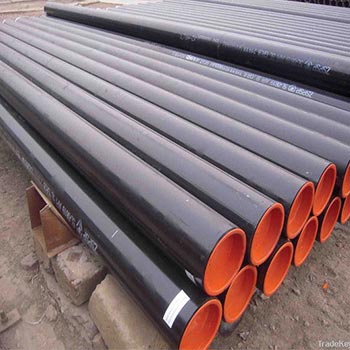

Available with us in different steel grades, our Oil & Gas Line Pipes (API 5L PSL1&PSL2) have both ends bevelled with plastic or steel for protection. They are usually painted black in....

View More Details

Send Enquiry

Company Information

Chengdu Derbo Group Co., Ltd.

Chengdu

View Number

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Available with us in different steel grades, our Oil & Gas Line Pipes (API 5L PSL1&PSL2) have both ends bevelled with plastic or steel for protection. They are usually painted black in colour. They are recommended by professionals and are used in many industries for their outstanding quality and performance. We entertain bulk and medium sized orders. Contact us for further information.

Standard: API 5L PSL1&PSL2

Steel Grades: Grade AB, X42, X46,X52,X56,X60,X65,X70

Size Range: OD:1/2” TO 24”. WT:3mm To 45mm

Manufacturing Process: Hot Rolled Seamless/ Electric Resistance Weld

Packing: External Black Painting ,Bothe Side With End Caps, In Bundles by Steel Strips

Specifications

Chemical composition and michanical properties for PSL 1
Steel Grade		Chemical compositionï¼% max)				Mechanical properties (min)
		C	Mn	P	S	Tensile strenght		Yield Strenght
		C	Mn	P	S	psi	Mpa	psi	Mpa
Seamless pipe
A25	CL	0.21	0.6	0.03	0.03	45	310	25.4	175
A25	CL ¡	0.21	0.6	0.045-0.08	0.03	45	310	25.4	175
A		0.22	0.9	0.03	0.03	48.6	335	30.5	210
B		0.28	1.2	0.03	0.03	60.2	415	35.5	245
X42		0.28	1.3	0.03	0.03	60.2	415	42.1	290
X46		0.28	1.4	0.03	0.03	63.1	435	46.4	320
X52		0.28	1.4	0.03	0.03	66.7	460	52.2	360
X56		0.28	1.4	0.03	0.03	71.1	490	56.6	390
X60		0.28	1.4	0.03	0.03	75.4	520	60.2	415
X65		0.28	1.4	0.03	0.03	77.6	535	65.3	450
X70		0.28	1.4	0.03	0.03	82.7	570	70.3	485
Welded pipe
A25	CL	0.21	0.6	0.03	0.03	45	310	25.4	175
A25	CL ¡	0.21	0.6	0.045-0.08	0.03	45	310	25.4	175
A		0.22	0.9	0.03	0.03	48.6	335	30.5	210
B		0.26	1.2	0.03	0.03	60.2	415	35.5	245
X42		0.26	1.3	0.03	0.03	60.2	415	42.1	290
X46		0.26	1.4	0.03	0.03	63.1	435	46.4	320
X52		0.26	1.4	0.03	0.03	66.7	460	52.2	360
X56		0.26	1.4	0.03	0.03	71.1	490	56.6	390
X60		0.26	1.4	0.03	0.03	75.4	520	60.2	415
X65		0.26	1.45	0.03	0.03	77.6	535	65.3	450
X70		0.26	1.65	0.03	0.03	82.7	570	70.3	485


Chemical composition and michanical properties for PSL 1
Steel Grade	Chemical compositionï¼% max)					Mechanical properties
	C	Si	Mn	P	S	Tensile strenght (Mpaï¼		Yield Strength (Mpa)
	C	Si	Mn	P	S	Min	Max	Min	Max
Seamless and welded pipe
BR	0.24	0.4	1.2	0.03	0.02	415	760	245	450
X42R	0.24	0.4	1.2	0.03	0.02	415	760	290	495
BN	0.24	0.4	1.2	0.03	0.02	415	760	245	450
X42N	0.24	0.4	1.2	0.03	0.02	415	760	290	495
X46N	0.24	0.4	1.4	0.03	0.02	435	760	320	525
X52N	0.24	0.45	1.4	0.03	0.02	460	760	360	530
X56N	0.24	0.45	1.4	0.03	0.02	490	760	390	545
X60N	0.24	0.45	1.4	0.03	0.02	520	760	415	565
BQ	0.18	0.45	1.4	0.03	0.02	415	760	245	450
X42Q	0.18	0.45	1.4	0.03	0.02	415	760	290	495
X46Q	0.18	0.45	1.4	0.03	0.02	435	760	320	525
X52Q	0.18	0.45	1.5	0.03	0.02	460	760	360	530
X56Q	0.18	0.45	1.5	0.03	0.02	490	760	390	545
X60Q	0.18	0.45	1.7	0.03	0.02	520	760	415	565
X65Q	0.18	0.45	1.7	0.03	0.02	535	760	450	600
X70Q	0.18	0.45	1.8	0.03	0.02	570	760	485	635
X80Q	0.18	0.45	1.9	0.03	0.02	625	825	555	705
Welded pipe
BM	0.24	0.45	1.2	0.03	0.02	415	760	245	450
X42M	0.24	0.45	1.3	0.03	0.02	415	760	290	495
X46M	0.24	0.45	1.3	0.03	0.02	435	760	320	525
X52M	0.24	0.45	1.4	0.03	0.02	460	760	360	530
X56M	0.24	0.45	1.4	0.03	0.02	490	760	390	545
X60M	0.24	0.45	1.6	0.03	0.02	520	760	415	565
X65M	0.24	0.45	1.6	0.03	0.02	535	760	450	600
X70M	0.24	0.45	1.7	0.03	0.02	570	760	485	635
X80M	0.24	0.45	1.85	0.03	0.02	625	825	555	705
