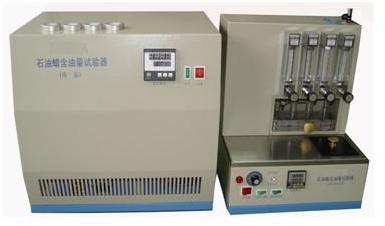

Oil In Wax Content Tester, Brand Name : Gold

We are offering oil in wax content tester.
gd-3554 wax in oil content tester is designed and made as per the national standard of people’s republic of china gbt3554 “test methods for oil content of petroleum wax”. It is suitable to determine oil content of petroleum wax, the congealing point of which is more than 30 °c and the oil content of which is less than 15%.
note: for some petroleum wax having oil content more than 5%, if the oil could not be completely dissolved in (mek) and the mixture is separated into two layers, this method is not applicable.
i. Main technical characteristics
1. The special designed refrigeration device, cooling bath of -35 °c, contains four cold troughs, so it can make test for 2 samples at the same time.
2. The wax melting bath and the evaporator of 35 °c are designed as a whole. The lower section is a wax melting bath having temperature controlling range of room temperature ~95°c. The bath temperature can be controlled and adjustable. The upper section is a air bath evaporation device. Its controlling temperature is 35 °c.
3. The temperatures of cooling bath and bath evaporator are both adjusted and controlled by digital temperature controller. The temperature can be accurately adjusted and controlled.
4. The flow rate of air from evaporator to sample is measured by a glass float-type flow meter. The flow rate can be accurately controlled as per the test requirements and the flow time can be preset within 60 minutes using timer as per the requirements for test time.
5. The instrument adopts desktop structure. It is novel, and convenient.
ii. Main technical specification and parameters
1. Power supply: ac 220v±10%, 50 hz;
2. Temperature controlling range of wax melting bath: room temperature~90°c±5°c;
3. Cooling bath temperature: -35°c±1°c;
4. Evaporation temperature: 35°c±1°c;
5. Flow rate: 2~3lmin;
6. Timing range of timer: 0~60min
