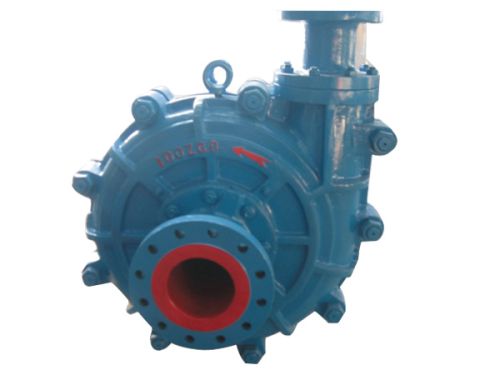

Oil Lubrication High Head Duty Slurry Pump

Product Description OHD type pump is horizontal single stage end suction with double casing slurry pump,it adopts to electric power plant .with good efficiency special for ash transportation in power plant. It adopts oil lubrication for high head operation. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. Product Application Especially suitable for power plant. Performance range Size:2.5-12inches Capacity:50-1800m3h Head:25-90m Material:Cr27,Cr28, Seal:packing seal,expeller seal,mechnical seal. Main Features A large percentage of duties allow the use of the ce ntrifugal seal which eliminates the need of sealing water.Gland shaft sealA packed gland type shaft seal is also available and can be fitted with a lowflow or a full flow flush seal water arrangement.Shaft and bearing assemblyA large diameter shaft with a short overhang minimizes deflection andvibration.Heavy-duty roller bearings are housed in a removable bearingcartridge.Pump BaseA minimum number if through bolts hold the pump casing to the frame .A means ofimpeller adjustment is provided in a convenient position below the bearinghousing.Outer Casing Split outer casing halves of cast or ductile iron contain the wear linersand provide high operation pressure capabilities.ImpellerThe impeller may be either moulded elastomer or hard metal.Deep side sealingvanes relieve seal pressure and minimize recirculation.
