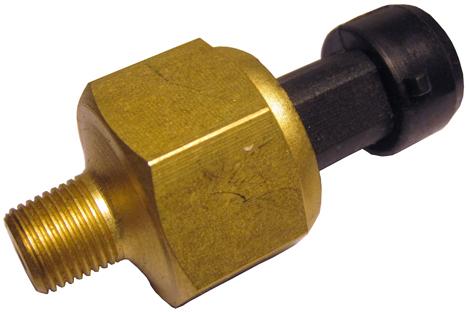

Oil Pressure Sensor

We offer oil pressure sensor.
Application
1,discharge and suction pressure monitoring
2,subcooling and superheat calculations
3,compressor oil pressure monitoring
4,condenser fan control
5,compressor staging and unloading
6,electronic expansion valve control
7,remote systems diagnostics and trending
performance and parameters
suply voltage 5vdc; 12vdc; 24vdc
output signal 0.5~4.5vdc; 1~10vdc
measuring range 250kpa；700kpa；1mpa；1.6mpa; 4mpa; 7mpa
proof pressure 150%fs
accuracy 1%
operating temp -20~120°c
storage temp -40~120°c
***all these parameters above can be customized***
machanical configuration
pressure port 1/8npt; g1/4
electrical connection 3 pin packard
sealing rating ip65
housing brass；stainless steel
diaphragm stainless stell
***all these parameters above can be customized***
