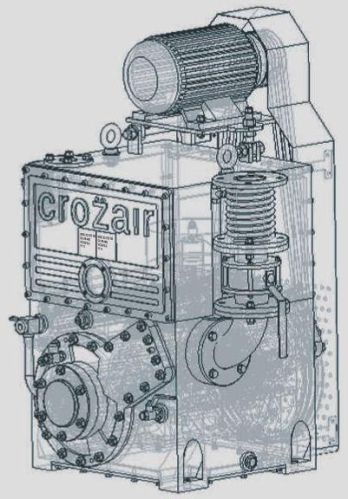

EVO HVHD Series High Vacuum System

High Displacement Under High Vacuum is Must.

This Vacuum System Has Following Features

·           High Pumping Capacity Under High vacuum

·           Dry Vacuum Booster Matched with Suitable Double Stage Rotary Piston Vacuum Pump t

·           For continuous operation below 0.05 Torr (0.06 mbar ), the vacuum booster can increase pumping speed by a factor of 10 or more

·           For operation at higher pressure and for faster evacuations, the booster may be approximately twice the capacity of the piston pump

·           Performance ranges 200-12,000 CFM (340-20,388 m3 /h) with ultimate vacuum levels as low as 0.2 microns

·           Low-profile systems with close-coupled boosters are available

·           Water Cooled System Able to Work on High Temperature are Long Duration

·           High Grade Metallurgy able to Tolerate Mild Corrosion and Best Suitable for Mild Moisture Removal Application.

·           Filled with Low Quantity (Only 10 Litres) Synthetic Vacuum Oil which delivers High Performance for Moisture Removal Application.

·           Control Panel with High Safety Features

·           Designed for Low Vibration

·           Low Operation Sound Level 78 dB @10 Torr at 10 Meter Distance
