Product Detail:-

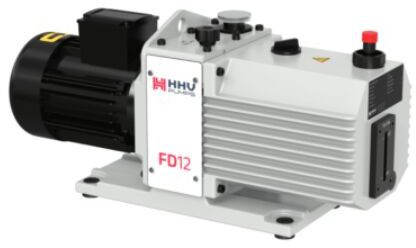

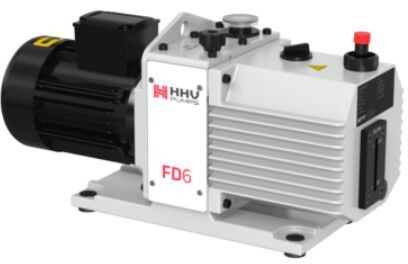

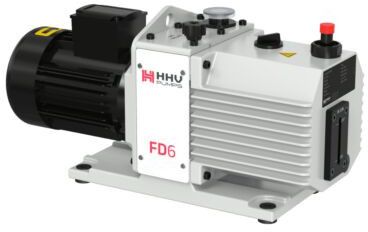

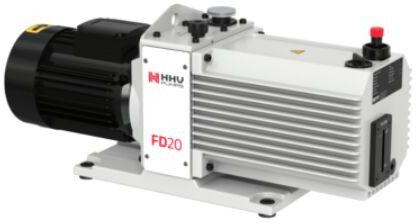

Two stages Oil sealed Rotary vacuum pumps:-
FD Series
Features of the FD Series
· Minimal vibration
· Lower noise level at 58 dBA
· Self-evacuation feature for gear box and motor support area
· Robust and compact
· Lower oil consumption
· Improved vapour handling performance
Products Specification
FD-Series Vacuum pumps (Two stage Oil sealed Rotary Vacuum pumps ) | |||||
Particular | Unit | FD6 | FD12 | FD20 | FD-60 |
Nominal Pumping speed @50 Hz | M3/h(L/min) | 6.2(103) | 12(200) | 20(333) | 60(1000) |
Nominal Pumping speed @60 Hz | 7.4(123) | 14.3(238) | 24(400) | N.A | |
Ultimate Vacuum (Total Pressure) | Gas ballast closed in mbar(Torr) | 2x10-3(1.5x10-3) | |||
Gas ballast Open in mbar(Torr) | 5x10-2(3.75x10-2) | ||||
Pump Rotational speed at no Load @50Hz | rpm | 1440 | |||
Pump Rotational speed at no Load @60Hz | 1720 | NA | |||
Max.nominal power Rating @50Hz | kw(HP) | 0.37(0.5) | 0.37(0.5) | 0.55(0.75) | 2.2(3) |
max.nominal power Rating @60Hz |
| 0.37(0.5) | 0.55(0.75) | 0.75(1) | N.A |
Weight | kg | 25.5 | 27.5 | 35.5 | 115 |
Inlet connection | KF-Flanges | KF-25 |
|
| KF-40 |
oil capacity | Lts | 0.7 | 0.9 | 1.2 | 6 |
