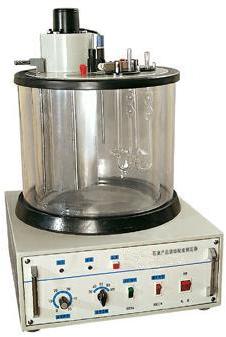

Oil Testing Equipment Viscosity Meter

We offer oil testing equipment and viscosity meter.
I---brief introduction
this instrument is designed and made as per the industry standard of people's republic of china syt5651 technical condition of petroleum products kinematic viscosity tester.
It is suitable to determine kinematic viscosity of liquid petroleum products (newton liquids) at a constant temperature as per national standard gbt265 petroleum products-determination of kinematic viscosity and calculation of dynamic viscosity.
Also it can be used to do determination as per astm d445.
Ii---main technical features
1.it adopts five grades of temperature control: 20°c,40°c,50°c,80°c,100°c.the temperature control accuracy can reach ± 0.01°c.
2.it adopts hard glass vessel and heat preservation cover(double-layer vessel).good heat preservation and easy to observe the sample.
3.it adopts desktop and all-in-one machine design,convenient to use.
4.it adopts electric stirrer to ensure the uniform of bath temperature.
iii---main technical specifications and parameters
1.power supply: ac(220±10%)v,50hz
2.heating power: 1000w(auxiliary heating), 650w(temperature control heating)
3.stirring motor: power 6w,rotating speed is1200rpm
4.temperature control range: room temperature~100°c
5.temperature control point:20°c,40°c,50°c,80°c,100°c
6.temperature control accuracy: ±0.01°c
7.constant temperature bath: 20l, double-layer vessel
8.ambient temperature: -10°c~35°c
9.relative humidity: ≤85%
10.temperature sensor: high accuracy thermistor
11.overall power consumption: ≤1800w
12.capillary viscometers: 7 pieces in total,inner diameter: 0.6mm,0.8mm,1.0mm,1.2mm,1.5mm,2.0mm,2.5mm
13.overall dimension: 530mm×400mm×670mm(bath is included)
