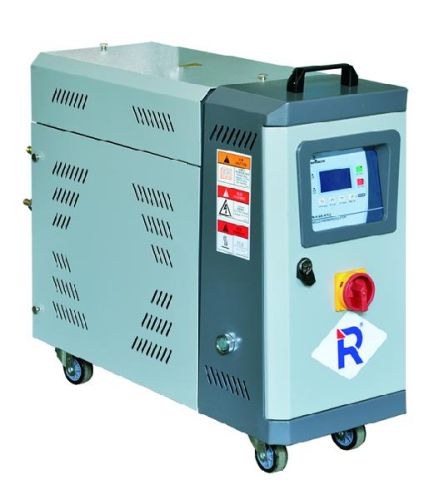

Oil Type Mold Temperature Controller

Description:
The RTC series of Oil heating adopts heat-exchanging principle,making use of high- heat-conduction oil as medium to keep the mould at a constant temperature during molding, which make sure top quality for molding. The optimized design ensures the heating temperature up to 200.
Features:
1. P.I.D temperature control giving full digital setting and fault display with high accuracy in order to precisely control water temperature with variation of 1oC, Moreover,direct-view,easy and simple for operation.
2.Equipped with horizontal pump,running in smooth and steady,stable flow with long working life.
3.cylindrical tube design,pressurization and explosion-proof.
4.Automatic alarming function,alarm and stop automaticly when the system has a breakdown.
5.Attractive appearance,easily-dismounted design,convenient for maintenance.
6.Two specifications of water and oil cooling for customers' selection.
Technical Specifications:
Model
Temp()
Cooling type
Heat power (KW)
pump power (KW)
Max.flow (LMIN)
Max.pressure (Bar)
Joints of mould (Inch)
Extermal size
HWL(mm)
Weight (kg)
RTC-630W
120
Water
Direct
cooling
6
0.5
30
3.5
38"(22)
650300850
