Oilfield Solids Control Equipment

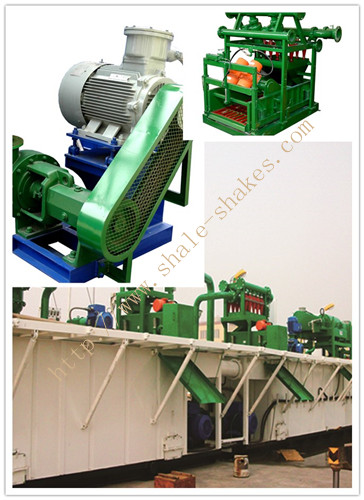

Oilfield solids control is a technique used in oilfield drilling rig to separate the solids in the drilling fluids that are crushed by the drill bits and carried out of the well surface. Oilfield solid control system is consist of oilfield shale shaker, vacuum degasser, oilfield desander, oilfield desilter, oilfield drilling decanter centrifuge.
oilfield solid control system is consist of oilfield shale shaker, vacuum degasser, oilfield drilling desander, oilfield desilter, oilfield drilling decanter centrifuge. All these oilfield solids control equipment were mounted in mud tank.oilfield shale shaker is used to separate the big solids with diameter above 75μm, and 45~74μm for drilling mud desander, and 15~44μm for mud desilter. Sometimes desander & desilter are combined as oilfield mud cleaner. When air enters into the drilling fluids, vacuum degasser is used to separate the air. If no air in the mud, the degasser would work as a big mud agitator. All these equipments are mounted on the top of the mud tank. After separating the solids, the clean mud would be pumped into the borehole again.
oilfield solids control system used for oil gas drilling mud circulation,horizontal directional drilling mud recycling,geothermal drilling,mining,coal exploration drilling,water well drilling etc.
