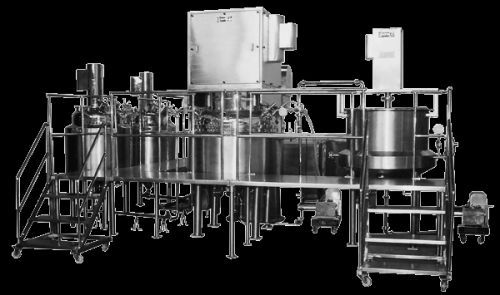

Ointment and Cream Manufacturing Plant

The Ointment Manufacturing Plants are ideal tools for the pharmaceutical & cosmetic industries for the production of Ointment, Cream, Lotions, Tooth Paste & other emulsions & homogenizations.

It is specially designed to take care of two critical factors which directly affects the quality of the Ointment / Creams.
• Minimum man handling of Ointment.
• Negligible vacuum drop during mixing & blending.

Needless to say, it also provides the benefits of the effective manpower utilization.

• This system consist of a closed circuit manufacturing facility from feeding of Wax / Water Phase to loading the hopper of filling machine.
• The Wax and Water at required temperature are transferred to Manufacturing Vessel or Planetory Mixer, by vacuum through conical filter.
• The product during emulsion formation is recirculated through Ointment Transfer Pump The Pump also discharges the product in the Storage Vessel.
• The Storage Vessel is then taken to the filling area and is connected to again Ointment Transfer Pump. or Storage Vessel remain fixed ( In bigger size ) &    pump transfer the ointments in the hopper of the Ointment Filling Machine.
• The entire Plant can be operated by centralised operating panel by one operator .
• The plant is equipped with an electrical control panel with digital temperature indicators and digital timers.
• Minimum two batches per shift of the same product can be assured in this plant.
• This plant conforms to CGMP standards (Paint Free Construction).
• Encosed are a few pages explaining the system in detail. In case of any queries feel free to contact us.

The Salient Features Of The Oitment Plant Are As Follows

• The Plant is designed to be operated only by one operator and one helper.
• All material transfers are done by vacuum or by transfer pumps.
• All the vessels are CGMP (paint free construction)
• The gaskets used are of silicon (food grade).
• All contact parts are of S.S. 304 quality material (SS316 provided on demand) & finished to class 4B (Mirror) finish and are crevice free.
• The entry of all agitators are from top & High Speed Emulsifier from bottom or In- line Emulsifier ( as per customer choice ).
• All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized.
• All pipes, pipe fittings and valves are of SS304 / SS316 ( as per custom requirement ) seamless quality, internally electro polished, with tri-clover ended    joints.
• The entire plant is equipped with CIP & SIP connections, so that customer can use these facility, if have CIP & SIP equipment.
• All values of temperature & time of the plant are indicated digitally on the control panel. Ampere indicates on Ampere meters.
• A micro processor based automatic operating plant can be designed as per requirement.
• All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
