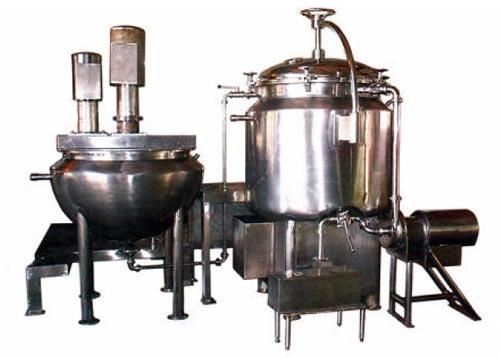

Ointment Manufacturing Plant

Listing ID #2014212

We are engaged in offering well-designed Ointment Manufacturing Plant to the customers. Our Ointment Manufacturing Plant has robust construction and high strength. We employ high grade components for the manufacturing of our Ointment Manufacturing Plant. The Ointment Manufacturing Plant is tested on different parameters by experts. Our Ointment Manufacturing Plants have reliable performance.
The Ointment manufacturing Plant is designed to cater the following process needs
Through – homogeneous Mixing of wax phase & aqueous phase material in Ointment Manufacturing Vessel by means specially designed W shaped anchorWax phase vessel for malting of Wax & Oil baseWater Phase vessel for aqueous phase material processingInline high speed emulsifier for proper emulsification for finer particle size , better skin penetratationCharging Hopper to charge Active Ingredients for Ointment Manufacturing VesselOintment / Cream storage vessels – Jacketed/ non JacketedVacuum Transfer of water & wax phases into Ointment manufacturing VesselTransfer pumps for transferring finished product into Batch Storage/Staging VesselTransfer pumps to transfer product to filling station etc.Ergonomic anti skid Working platform for fatigue Free plant operation & minimal operator movements
Salient Features
The Drive being from bottom , the machine becomes accessible with the Top Dish opening with a swing out arrangement & hennse enavle for easy cleaning for every change overNo hydraulic lift for top dish opening , hense purely GMPW shaped anchor ensures SEMI CONTRA motion for better & fast mixing. Even Phase reversals possible. The special blade design ensures a unique flow pattern. i.e. material movement from core to circumferential & upward to downward & vice versa.The Teflon scrappers bolted to baffles & anchor ensures 100 & cleaning , hense no local heating , no charring of productDuble cartridge type mechanical seal for main manufacturing Vessel ensures vacuum tightness to attain Max vacuum level upto 700 MM of HgThe inline type Homogeniser ( IKA-WERK type Design 0= ensures 100% recirculation of the product & with the use of specific size sieves , the globule size of the finished products can be controlledThe drive from bottom , hense no spillage of oil , grease & dirt into the product ensures contamination free processingUn Touched product transfer maintaning highest level of operational hygeineErgonomicaly designed anti skid working platform with safety railing for better & safe operational movementsLoad Cells for batch weighing avoiding human errorFlow meter for accurate quantity monitoringPneumatically aided automatic balves for all process lines & utility lines controlled through PLCSCADA ( supervisory control & data Aqusition system) base IPC Plus PLC operated control station compatabile with USFDA / EUFDA / GAMP normsTotal documentation support start from Design Qualification to Performance qualificationThe team of qualified engineers ever prompt after sales service
Specifications
ModelWorking CapacityVollume OMV.Power Cons.Steam ConsumptionMachine Dimension (mm)(Kg/Batch)Litres(HP)SteamLWHOMP-5050605100 Kg/Hr300020002500OMP-1001001209150 Kg/Hr400020002500OMP-25025030014200 Kg/Hr500020003000OMP-50050060019400 Kg/Hr600030003000OMP-75075090024500 Kg/Hr700040003000OMP-10001000120031650 Kg/Hr750050003500
