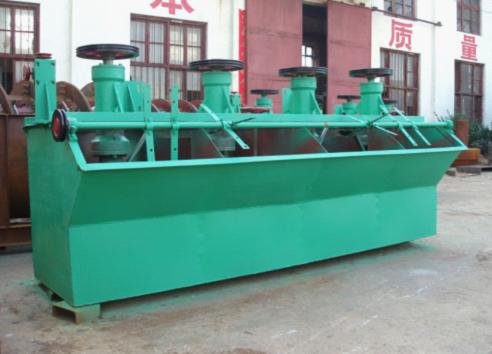

Ok Flotation Cell

We are offering ok flotation cell etc. Introduction
ok flotation cell is a two stage system with 3,4 or 5 flotation cells in series. It is used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation,fine separation and flotation.
Features
ok flotation cell is a two stage system with 3,4 or 5 flotation cells in series.
Strong agitation ability and simple structure.
Large air-absorption capacity, small diameter of impeller, low circle velocity and low energy consumption.
It can be used as a flotation cell set combined with model xcf
application
it is used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation,fine separation and flotation.
Working principle
when the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure can be produced. On one hand, ample air is absorbed and mixed with mineral slurry. On the other hand, the mixed mineral slurry is mingled with additive. Meanwhile, the mineral is bounded with thinning foams and floats up to the surface of mineral slurry, and then the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
technical parameters
model effective volume (m3) capacity(m3min) d of impeller (mm) impeller revolution(r.p.m) blower pressure
(kpa ) aeration rate (m3m2) motor power for agitation (kw) motor power for scraper (kw) weight (kg)
kyf-1 1 0.2-1 340 281 ≥12.6 2 4 1.1 826
kyf-2 2 0.4-2 410 247 ≥14.7 5.5 1419
kyf-3 3 0.6-3 480 219 ≥19.8 7.5 1.5 1885
kyf-4 4 1.2-4 550 200 ≥19.8 11 2206
kyf-8 8 3.0-8 630 175 ≥21.6 15 3600
kyf-16 16 4.0-16 740 160 ≥25.5 30 5900
kyf-24 24 4.0-24 800 150 ≥30.4 7500
kyf-38 38 10-38 880 139 ≥34.3 45 10300
