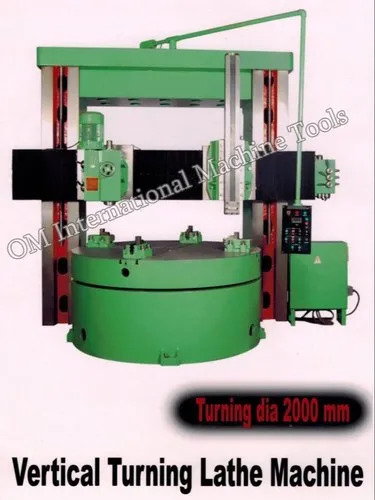

CASTING 1200 Mm Vertical Turning Lathe Machine, Automatic Grade : Semi Automatic

₹ 2.25 Lakh - ₹ 2.60 Lakh / Piece

Automatic GradeSemi Automatic
Maximum Working Height1200 Mm
MaterialCASTING
Brand NameOM
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Company Information

Batala, Punjab

4.5/5

Member Since 11 Years
Nature of Business Manufacturer
GST No. 03BDOPA4899P1ZU

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Automatic GradeSemi Automatic
Brand NameOM
Maximum Working Height1200 Mm
MaterialCASTING
Max Turning Diameter2200 MM
Max Dia For Facing And OD Turning2000 MM
Max Turning Length2200 MM
PhasePhase
CertificationISO 9001:2015,CE Cerified
Ram Heads on Cross Rail2 PCS
Chuck Diameter2000 MM
Rapid TraverseYES
TypeVertical Lathe Machines
Machine ConditionNew
Warrenty1year
Working Height Under Cross Rail1200 MM
ConditionNew
Max Working Height Under Cross Rail1200 Mm

Vertical Turning Lathe Machine Manufacturer

Vertical Turning Lathe Machine Exporter

Lathe Machine in Batala

OM Brand - Vertical Turning Lathe Machine

We are one of the leading manufacturers and suppliers of Vertical Turning Lathe Machine. The offered vertical turning lathe machine operates by rotating the work piece on its axis, for performing the operations such as sanding, cutting and drilling. Our supplied vertical turning lathe machine is available at very affordable and economic market selling rates.

Technical Specification

Particular	OVTL-100	OVTL-120	OVTL-150	OVTL-200	OVTL-250	OVTL-300	OVTL-400	OVTL-500
Table Diameter	1000 mm	1200 mm	1500 mm	2000 mm	2500 mm	3000 mm	4000 mm	5000 mm
Max. Swing	1300 mm	1600 mm	2000 mm	2500 mm	3000 mm	3600 mm	4600 mm	5600 mm
Max. Turning Dia With Side Head In Working Position	1200 mm	1400 mm	1800 mm	2300 mm	2800 mm	3300 mm	4300 mm	5300 mm
Working Height Under Cross Rail	1000 mm	1200 mm	1500 mm	1600 mm	1600 mm	2300 mm	2500 mm	2500 mm
Vertical Travel of Ram Head	500 mm	600 mm	600 mm	1000 mm	1000 mm	900 mm	1000 mm	1000 mm
Horizontal Travel of side head	600 mm	600 mm	600 mm	700 mm	800 mm	900 mm	1000 mm	1000 mm
Main Motor H.P.	15 H.P.	15 H.P.	20 H.P.	25 H.P.	30 H.P.	40 H.P.	40 H.P.	50 H.P.
