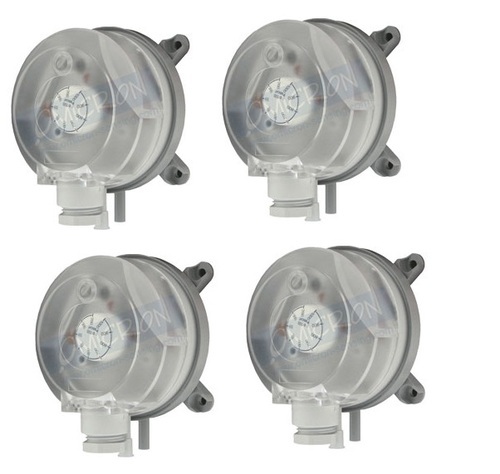

Omicron Differential Pressure Switch DP930

Get Latest Price

Electrical Rating : 2A, 250V AC
Accessories : 6 ft (1.8m) flexible tubing (2) Static pressure fittings Z type mounting bracket Mounting screws
Media : Air / Gases
Repeatability : 2%
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Weight : 3.5 oz (100 g)
Electrical Connectio : Screw terminals
Model : DP930
Max Pressure : 40” w.c. (10KPa)
Electrical Rating : 2A, 250V AC
Electrical Rating : 2A @ 250 V
Accuracy : ±2% of F.S
Deadband : approximately 10% of max set point
Media : Air and compatible gases
Accessories : 6 ft (1.8m) flexible tubing (2) Static pressure fittings Z type mounting bracket Mounting screws
Wetted Parts : Silicone
Media : Air / Gases
Enclosure Rating : NEMA 13 (IP 54)
Repeatability : 2%
Range : 0 to 4kPa
Temperature Limits : 5 to 140° F (-15 to 60° C)
Process Connection : 3/16” I.D. flexible tubing
Enclosure : ABS

Special Features :

High Quality, Low-Cost

Visual Set Point Indication

Hassle-Free Field Adjustment Knob

2% Repeatability

Description :

The DP930 Differential Pressure Switch is a low-cost easy to use switch for very low pressure applications. The switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for 1A @ 250V and can be set as low as 0.08” w.c. (20 Pa)

Specifications :
