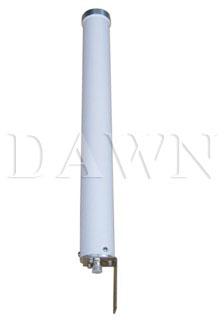

Omni Antenna(QJ-800/2500-6-TO)

MOQ1 Piece(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

Model: QJ-800/2500-6-TO Specification of Omni Antenna: Frequency Range:800-2500MHz VSWR:≤1.5 Input Impedance:50Ω Gain:6 dBi Horizontal Beam width:360° Vertical Beam width:60° Electrical Down....

View More Details

Send Enquiry

Company Information

Dawn Communication Co.,Ltd.

China

View Number

Member Since 15 Years
Nature of Business Manufacturer
Year of Establishment 2005

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model: QJ-800/2500-6-TO
Specification of Omni Antenna:
Frequency Range:800-2500MHz
VSWR:≤1.5
Input Impedance:50Ω
Gain:6 dBi
Horizontal Beam width:360°
Vertical Beam width:60°
Electrical Down tilt:0°
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radiating Element Material: Hpb62-1
Radome Material:Fiberglass
Rated Wind Velocity:210km/h
Weight:1.5 kg
Dimension:Φ63*600mm
Dimension of mounting pole: Ø35-Ø60mm
Features of Omni Antenna:
Low VSWR;
Lighting Protection, Moisture-proof and Water-proof;
Adopt good quality Fiberglass, Long time; operation;
Supply with Mounting Kits.
