Omnidirectional Laser Scanner

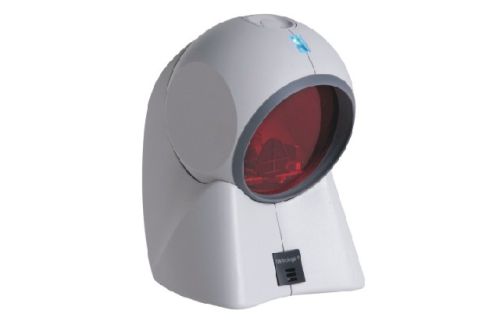

Orbit 7120 Omnidirectional Laser Scanner

• Dimension:  169 mm x 63 mm x 51 mm
• Power:  675 mW (125 mA @ 5 V)
• Weigth:  100 g (3.5 oz)

Physical Characteristics

• Dimensions:  105 mm x 102 mm x 150 mm
  Weight:  400 g (14.1 oz)

Electrical

• Input Voltage:  5 VDC ± 0.25 V
  Operating Power:  900 mW (180 mA @ 5 V)
  Standby Power:  850 mW (170mA @ 5 V)
  Host System Interfaces:  USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation

Environmental

• Operating Temperature:  0°C to 40°C (32°F to 104°F)
  Storage Temperature:  -40°C to 60°C (-40°F to 140°F)
  Humidity:  5% to 95% Relative Humidity, Non-Condensing
  Drop:  Designed to withstand 1.2 m (4´) Drops
  Environmental Sealing:  Sealed to Resist Airborne Particulate Contaminants
  Light Levels:  4842 Lux

Scan Performance

• Scan Pattern:  Omnidirectional: 5 Fields of 4 Parallel Lines; Button Activated Single Line (7180)

  Scan Speed:  Omnidirectional: 1120 Scan Lines Per Second; Single Line: 56 Scan Lines Per Second (7180)

  Print Contrast:  35% Minimum Reflectance Difference

  Pitch, Skew:  60°, 60°
  Decode Capability:  Reads Standard 1D and GS1 DataBar Symbologies
