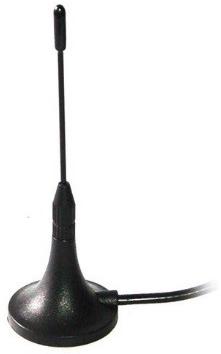

Omnidirectional Magnetic Mount GSM Antenna

We are offering 900-1800 mhz 2.5 dbi omnidirectional magnetic mount gsm antenna.
Descriptions
this compact omnidirectional antenna is ideally suited for 900mhz ism and gsm multipoint mobile applications including service vehicles, public transportation, law enforcement, mining and construction vehicles, as well as numerous other commercial and industrial applications where mobility and wide coverage is desired.
this antenna is also compatible with 900mhz wireless lan and cellular systems as well as rfid. The magnetic base is suitable for fixing to vehicles or other metal surfaces as well as sitting on a tabletop or shelf.
Features
ï¿­ superior performance
ï¿­ compact size
ï¿­ magnetic mounting system with 3m cable
ï¿­ indoor or outdoor use
ï¿­ ism, gsm, rfid, cdma mhz cellular compatible
applications
ï¿­ 900mhz ism band & 900mhz cellular band applications
ï¿­ 900mhz digital spread spectrum radios & 900mhz telemetry products
ï¿­ gsm & cdma
ï¿­ wireless video transmitters and receivers
ï¿­ cellular modem applications
specifications
model ame-ctqgsm-2.5dbi-85mm
frequency range 824-8961850-1990 mhz; 890-9601710-1880mhz
bandwidth 90280 mhz
gain 2.5dbi
polarization vertical
vswr �1.5
rate power 50 w
nominal impedance 50 î©
connector smasmbsmcbncfme etc.
Dimension î¦30ã�85mm
cable length 2m3m5m,etc.
Cable type rg174
mounting magnetic
housing black
