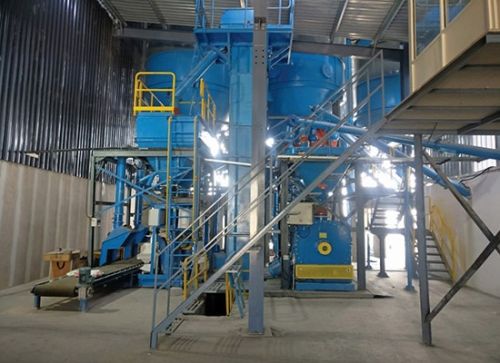

On Ground Wall Putty Plant, Packaging Type : Bags

This design stands out for its carefully planned layout of equipment on the ground surface, which differentiates between the various processing segments. The material processing, storage, and conveying equipment is placed around the pit-based structure of weighing and mixing while the finished goods packing and storage sections are at ground level.
The raw material process and storage section– No. of Silos are mounted separately on the ground where raw ingredients such as powder materials are conveyed from ground level to silos. A pneumatic feeding system and bucket elevator feeding are effective conveying options.
The raw material conveying and weighing section- Raw ingredients such as powder materials are conveyed from silos and separately batched in individual the weighers (located at the top level of the weigher structure). A screw conveyor is a more suitable option for conveying into the weighers. Also, at the same level, various additives are batched in additive the weigher. (located at the top level of weigher structure)
The mixing section– It is a pit-based structure, where batched material from the weighers and additives are transferred in a mixer for mixing as per the predefined recipe.
The finished goods packing and storage section– It is at the ground level of the structure. In this section, the final product batch from the mixer is automatically discharged into a discharge hopper, transferred by bucket elevator to a packing hopper, and packed in bags by the packing machine. These bags are then conveyed to stockyards through a bagging conveyor.
