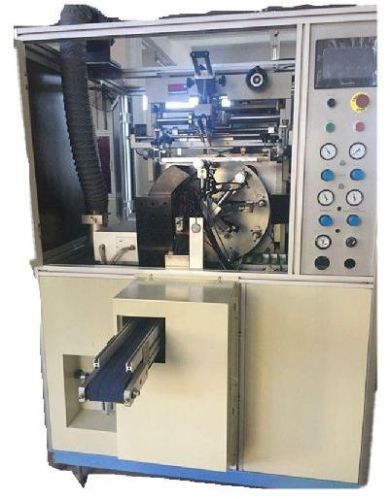

One Color Automatic UV Screen Printer With Photoelectronic Sensors LC-SU119

₹ 2.53 Cr / Set

MOQ1 Set(s)
Automatic GradeAutomatic
Brand NameLuen Cheong (LC)
Plate TypeScreen Printing Plate
Power1-5kw, 4.5kg
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ApplicationDetergent Bottles, Pens, Beverage Bottles, Cups, Cans, Cosmetics Package Box, Lipstick Tube
Plate TypeScreen Printing Plate
After-Sales Service ProvidedEngineers Available To Serive Oversea
Number Of FlowerAutomatic Screen Printing Machine
Availability1100kg
Country of Origin380V
ConditionNew
Automatic GradeAutomatic
Power1-5kw, 4.5kg
Warrenty1 Year
Brand NameLuen Cheong (LC)
Height for bottle20 mm < height < 200 mm
Machine cover area2600 mm x 3600 mm x 2000 mm
Printing area236 mm x 170 mm
Max printing speed3200 pcs/hour
Main machine size1500 mm x 1180 mm x 1900 mm
Air Consumption100 liter/min
Power supply380V ,3 phase ,50Hz
UV Lamp Power4 KW
Diameter for bottle10 mm < diameter < 120 mm
Machine weight1100 kg
Air supply5 to 7 bar
Power consumption4.5 kw

Youtube Channel :

https://www.youtube.com/channel/UCp1UrWHnR1OMbTxxGodXsaw/search?query=&pbjreload=10

Contact Us :

Catherine Dai (Sale Manager)

Email : manager@cn-print.com

Whatapp : +86 13642908605

Wetchat : LCPrinting888

Skype : manager@cn-print.com

Mobile : Mob: +86-13642908605

Parameter

Product name	One color automatic UV screen printer with photoelectronic sensors
Model No	LC-SU119
Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	Japan Fuji servo, German Leuze color sensor and Japan Hitachi PLC system,And the German Leuze color sensor is used to recognized the print position. Video Link: https://youtu.be/Rt2jCnzssEQ
Advantage	1.Specially design for circular shaped applications such as tubes,caps,and bottles. 2.Servo optical fiber indexing system.It is possible to do multi-colors printing and over pint for some applications 3.The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on It combines mechanical driven with pneumatic driven, and LED display. The maximum printing capacity of the machine is 3200pcs/hr. 5. This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”. 6. The electrical components and control system adopt from Japan and Germany, ensure good printing quality 7. We provide machine design and construction services for special application
Parameter	1.Max printing speed : 3200 pcs/hour 2.Printing area : 236 mm x 170 mm 3.Height for bottle : 20 mm < height < 200 mm 4.Diameter for bottle : 10 mm < diameter < 120 mm 5.UV Lamp Power : 4 KW 6.Main machine size : 1500 mm x 1180 mm x 1900 mm 7.Machine cover area : 2600 mm x 3600 mm x 2000 mm 8.Machine weight : 1100 kg 9.Air supply : 5 to 7 bar 10.Air Consumption : 100 liter/min 11.Power supply : 380 V ,3 phase ,50Hz 12.Power consumption : 4.5 kw
Usage	Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube.
Free Fitting	1. One set fixture for the product 2. One screen frame 3. One operation manual.
Shipping way	By sea, by air, by express
Delivery time	Within 40 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)
