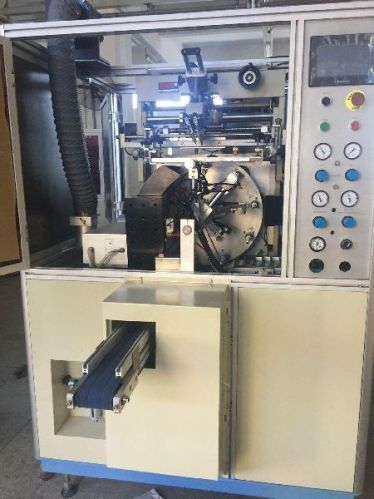

    One Color Automatic UV Screen Printing Machine

    One Color Automatic UV Screen Printing Machine

    ₹ 24.88 Lakh / Piece
    Get Latest Price
    • Brand NameLC
    • Power Supply380 V ,3 phase ,50Hz
    • Power Consumption4.5 kw
    • Air supply5 to 7 bar
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    LUEN CHEONG PRINTING EQUIPMENT LTDverified-icon
    location Dongguan
    View Number
    • calendar Member Since 14 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 1991

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameLC
    • Power Supply380 V ,3 phase ,50Hz
    • Power Consumption4.5 kw
    • UV Lamp Power4 KW
    • Max printing speed3200 pcs/hour
    • Machine cover area2600 mm x 3600 mm x 2000 mm
    • Diameter for bottle10 mm < diameter < 120 mm
    • Printing area236 mm x 170 mm
    • Height for bottle20 mm < height < 200 mm
    • Main machine size1500 mm x 1180 mm x 1900 mm
    • Machine weight1100 kg
    • Air supply5 to 7 bar
    • Air Consumption100 liter/min

    Advantages :

    • Specially design for circular shaped applications such as tubes,caps,and injectionmolds bottles.
    • Servo optical fiber indexing system.It is possible to do multi-colors printing andoverpint for some applications
    • The machine integrates automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system and so on
    • It combines mechanical driven with pneumatic driven, and LED display. The maximun printing capacity of the machine is 3200pcs/hr.
    • This system is equipped with various warning devices such as low pressure and Overloading.The sensor can detect “no product,no printing”.
    • The electrical components and control system adopt from Japan and Germany, ensure good printing quality
    • We provide machine design and construction services for special aplication



    One color automatic UV screen printer with  photoelectronic sensorsfitting :

    • One set fixture for the product
    • One screen frame
    •  One operation manual.
