One Way Clutch Bearing Cam Clutch

We are offering one way clutch bearing cam clutch.

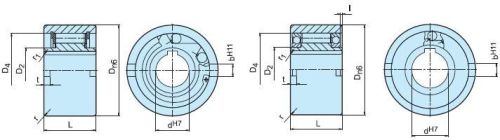

Type size overrunning speeds bearing weight
nfr
(anr-ang) dh7 tkn1) nimax2) namax3) dn6 d2 d4 l I t bh11 r r1
[mm] [nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
8 20 1000 1000 * 37 20 30 20 3 6 1 1.5 0.1
12 20 1000 1000 * 37 20 30 20 3 6 1 1.5 0.1
15 78 850 850 * 47 26 37 30 3.5 7 1.5 1.5 0.3
20 188 650 650 * 62 37 52 36 3.5 8 2 2 0.6
25 250 2100 3600 16008** 80 40 68 40 0.2 4 9 2.5 2 1.2
30 500 1700 3200 16009** 90 45 75 48 0.2 5 12 2.5 2 1.8
35 663 1550 3000 16010** 100 50 80 53 1.2 6 13 2.5 2.5 2.4
40 1100 1150 2600 16011** 110 55 90 63 2.2 7 15 3 2.5 3.3
45 1500 1000 2400 16012** 120 60 95 63 2.2 7 16 3 2.5 4
50 2375 800 2150 16014** 130 70 110 80 2.7 8.5 17 3.5 3 5.7
55 2550 750 2000 16015** 140 75 115 80 4.2 9 18 3.5 3 6.5
60 4250 650 1900 16016** 150 80 125 95 3.2 9 18 3.5 3.5 8.9
70 5875 550 1750 16018** 170 90 140 110 1.1 9 20 3.5 3.5 13.5
80 10000 500 1600 16021** 190 105 160 125 0 9 20 4 3.5 19
90 17250 450 1450 16024** 215 120 180 140 0.6 11.5 24 4 4 27.2
100 19625 350 1250 16028** 260 140 210 150 2.6 14.5 28 4 4 44.5
130 34750 250 1000 16032** 300 160 240 180 2 17.5 32 5 5 68
