One Way Fixed Touch To Open Cabinet Hinge

MOQ1000 Set(s)
MaterialCold rolled steel
OEM & CustomizingOEM & Customizing is available.
Pitch hole48mm, 45mm, 52mm
FinishNickel plated
Supply TypeManufacturer
Preferred Buyer Location All over the world

Product Details

MaterialCold rolled steel
Pitch hole48mm, 45mm, 52mm
FinishNickel plated
Thickness of door14—21mm
Salt spray testpass 48 hours
Depth of hinge cup11.5mm
OverlayHalf overlay, full overlay, insert(embed, inset
OEM & CustomizingOEM & Customizing is available.
Open-close testpass 50,000 times
Dia. of hinge cup35mm
Opening angle95-105 degree

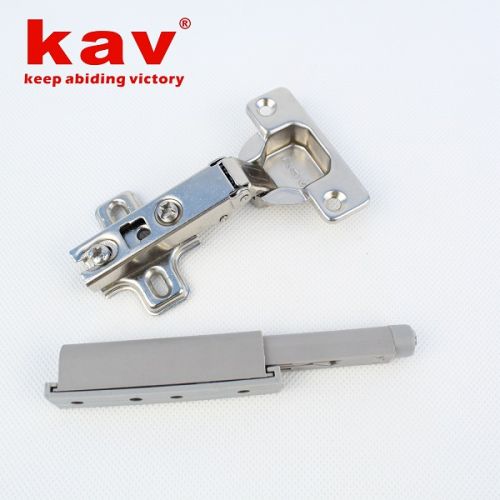

We are offering one way fixed touch to open cabinet hinge.
1.type: door & window hinges
2.place of origin: guangdong, china (mainland)
3.brand name: kav
4.model number: s135f07(inset), s135f08(half overlay ), 5.s135f09(full overlay)
6.main material: cold rolled steel
7.finish: nickel plated
8.openin angle: 95-105 degree
9.packing: 100pcs or 200pcs
10.application: furniture, cabinet, cupboard, etc.
11.dia. Of hinge cup: 35mm
12.depth of hinge cup: 11.5mm
13.pitch hole: 48mm, 45mm, 52mm
14.door thickness: 14--21mm
15.oem & customizing: oem & customizing is available.
16.strengthened adjustable screw can widen the adjustable ranges and lengthen using life.
17. Widening manganese steel spring can disperse force when the hinge closed. Strengthened spring is 2.5mm thick, while the thickness of normal ones is 1.5mm.
