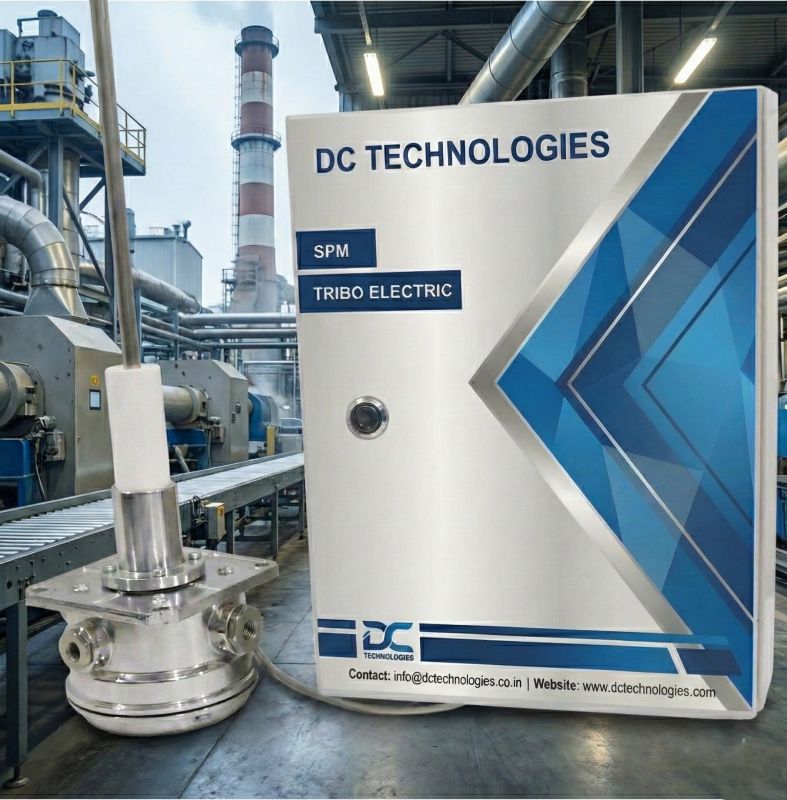

Electric Alloy Steel Online Air Stack Monitoring System

₹ 1.30 Lakh / piece

MaterialAlloy Steel, Stainless Steel
Driven TypeElectric
CertificationCE Certified, ISI Certified
Brand NameDC TECHNOLOGIES
Supply TypeManufacturer, Supplier
Preferred Buyer Location India only

Company Information

Member Since 3 Years
Nature of Business Manufacturer
GST No. 07IJPPK0798K1ZB

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameDC TECHNOLOGIES
MaterialAlloy Steel, Stainless Steel
Driven TypeElectric
ColorDark-silver, Grey, Shiny-silver, Sky-blue
ConditionNew
Power220V
ApplicationStack Monitoring
CertificationCE Certified, ISI Certified
TypeStack dust monitoring system
WarrantyOne year
Output420mA

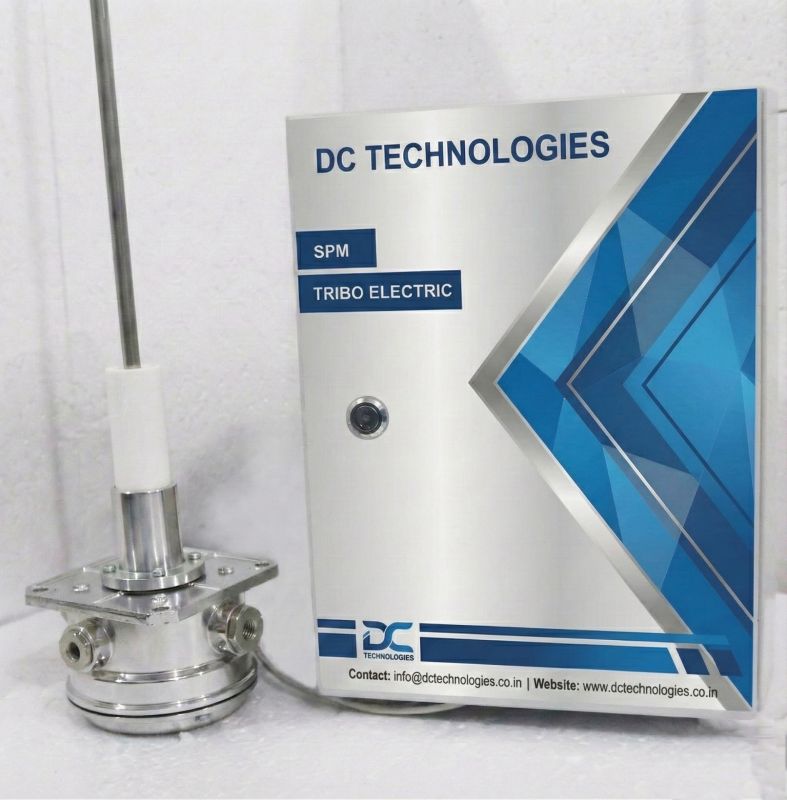

Tribo Electric Dust Monitor

The Tribo Electric Dust Monitor is a real-time, continuous, indicative dust monitor with logging and alarm capability. It consists of a single probe for installation in a silo or duct, and a control unit or logger. This type-approved measuring device with a measuring probe is for very low to medium dust concentrations. It is ideal for thick-walled or double-walled ducts because of the one-sided installation.

The Tribo Electric Dust Monitor measurement is based on the principle of Tribo-Electric charge transfer. The electrical charge carried by dust particles is captured by a highly sensitive Tribe-Electric probe, amplified, and then transmitted to the control unit. As the current generated by the charge is proportional to the concentration of particles present, an indicative signal of dust presence results.
