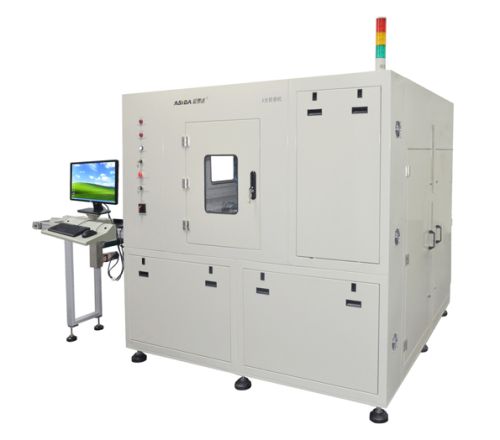

Online Automatic X-ray Inspection Machine XG5300

Online automatic X-ray inspection machine XG5300 X-ray machines Usage This product is mainly used in battery industry. X-ray penetrate the inner of battery with X-ray transmission principle. Automatic detect the internal structure and the coverage of the positive and negative of the battery.Automatically sorting OKNG products. Features Product features 1.Automatic detection High automation, automatic loading,detection, sorting qualifiedNG products. 2.High efficiency The machine is suitable for batch inspection with cam indexers controlling eight degrees turntable running in high speed and two sets of imaging system. 3.Images and data real-time online display Test data and images of many parts of the same battery is shown in the same software interface, convenient observation recognition. 4.Quick changing model Only replace jig if changing test products. 5.Safety protection The whole equipment safety interlock, triple protection function, any part of the fuselage surface radiation meet safety standards. Parameters X-ray Tube Tube Voltage MAX 90KV Tube Current MAX 89uA Focal Spot Size 5μm Cooling Mode Strong wind cooling Image-forming  System Field of View Range 2"4" Resolution 75110 lpcm Camera Resolution 1024*1024 pixels Detection Precision Repeat accuracy 60μm Efficiency Detection Efficiency ≥50 PPM False Rate ≤2% Missing Rate 0.0% Excellent Products Rate ≥99.5% Safety Standard International Radiation Safety Standards ≤1usvhr
