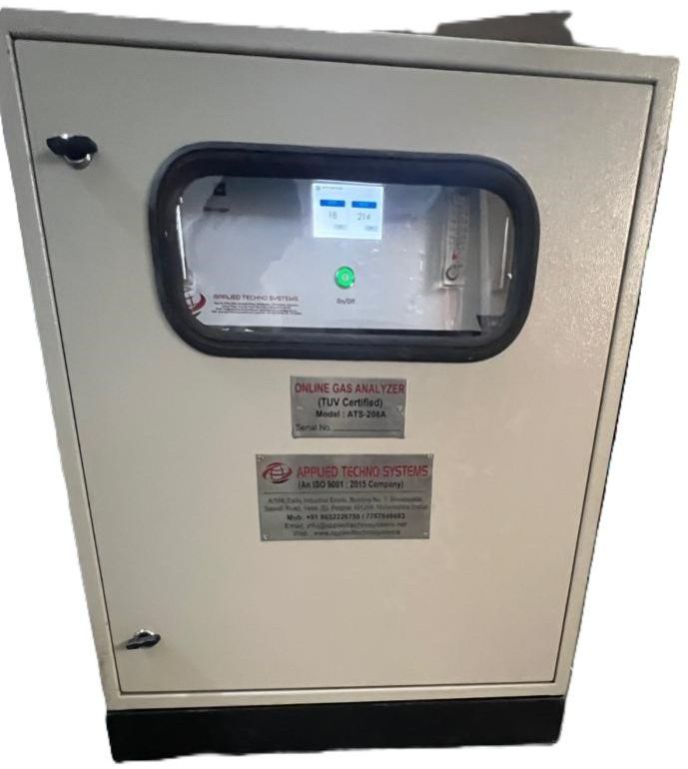

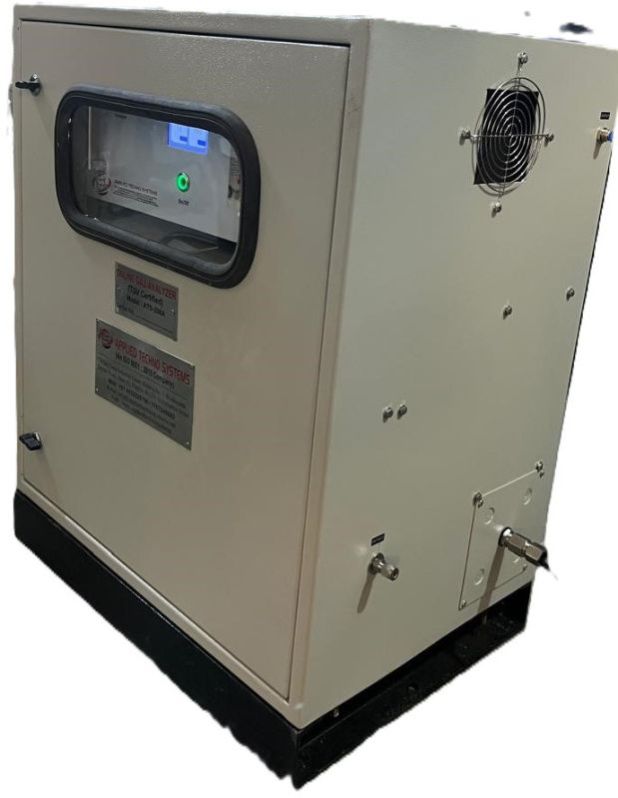

Model ATS-208A** is an advanced Online Continuous Stack Emission Monitoring System (CEMS) designed for real-time monitoring of critical air pollutants emitted from industrial stacks, flue gas ducts, and exhaust systems. It ensures compliance with CPCB, EPA, and international emission standards, helping industries control pollution and meet regulatory obligations.
⚙️ Technical Specifications:
| Model Number | ATS-208A |
| Measured Gases | SO₂, NOx, CO, CO₂, O₂, NH₃, HCl, VOCs (customizable) |
| Technology | NDIR, UV-DOAS, Zirconia, Electrochemical (as per gas type) |
| Measurement Range | Configurable per gas (ppm or mg/Nm³) |
| Oxygen Measurement | Zirconia Sensor / Paramagnetic Analyzer |
| Dust/Particulate Monitoring | Optional – via Optical or Triboelectric Sensors |
| Sampling System | Heated extractive system with probe, filter, and cooler |
| Calibration | Automatic / Manual – Zero & Span Calibration |
| Output | 4–20 mA, RS-485, Modbus, TCP/IP, Relay Outputs |
| Display | 7” Touchscreen HMI / Industrial Panel PC |
| Data Logging | Built-in + cloud/remote server interface |
| Power Supply | 230V AC / 50Hz |
| Enclosure | IP65 / Flameproof enclosure for Zone 2 (optional) |
| Compliance | CPCB Guidelines / USEPA 40 CFR Part 60/75 |
🧰 System Features:
✅ Multi-gas real-time emission monitoring
🔥 High-temperature resistant sampling probe
📊 Data logging with real-time graphical trend
📁 Automated report generation for authorities
🌐 Remote access and diagnostics via Ethernet/Cloud
🔧 Self-cleaning and auto-calibration capabilities
📜 Compliance-ready with Zone 2 IEC standards
⚙️ Thermal power plants
🏭 Cement and Steel industries
🔥 Incinerators and waste-to-energy plants
🛢️ Refineries and Petrochemicals
🧪 Chemical and Fertilizer units
🌾 Pulp and Paper industries
