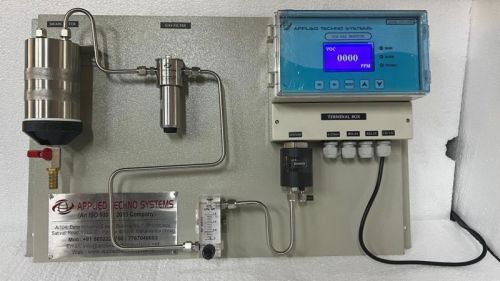

Online Hydrogen Gas Purity Analyzer Model Ats 208A

The Applied Online Hydrogen (H2) Gas Purity Analyzer Model ATS 208A with digital read out and alarms is a direct reading. Gas Purity Analyzer, designed to serve the demanding field requirements of various gases Producing and using Industry. It is designed to replace the cumbersome and time consuming Or set apparatus and provide quick and accurate reading of gas Purity. It offers the user a distinct advantage in terms of economy, dependability maintenance and ease of operation. The instrument incorporate TCD / INFRARED/Electrochemical as a transducer. It has adjustable visual and audible alarms with Automatic Zero Calibration Feature.
OPERATIONS-On start up, the instrument automatically goes through complete self integrity check, calibration check on demand. The press of sampling switch initiates the sampling through inbuilt suction pump and digitally displays the results.
DISCRIPTIONS-Its simple automatic operation, continuous measurement & digital display of purity concentration makes it a valuable aid for on site instant analysis & follow up action. Its data logging & computer interface features can be used for further detailed analysis in the laboratory.
FEATURES-Complete Automatic Operation Self Diagnostic Check Proven Sensor Technology Inbuilt Suction Pump.
RS 232/RS 485 and USB Computer Interface Single 320 X 240 Graphics LCD Display Intrinsically Safe. Continuous, Stable Alphanumeric Display
SPECIFICATIONS-
Range : 0 - 100% V/V.0 to 50,100,1000PPM
Minimum Resolution : 0.01 %
Readout : 128 X 64 Graphics LCD Display
Sampling Method : In Built Suction Pump
Detection Principle : Thermal Conductivity / Infrared/Electrochemcial
Accuracy : +/- 0.1% of Full Scale.
Response Time : Less than 10 Seconds.
Warm Up Time : 1 Minute.
Dimensions : 430(W) X 150(H) X 250(D)mm.
Accessories : Flow Meter, Warranty : One Year. A
nalog Output : 4-20mA
Digital Output : RS 232, RS 485,Relay output
