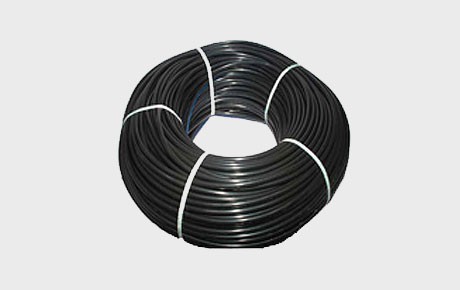

Online Lateral Pipes

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

OM” Lateral pipes are produced from 100% leaner law density polyethylene vergin materail. It also posses/ the compare standard mark as per IS 12786. “OM”. LLDPE tubings (pipes) are used as micro irrigation laterals on which sprayers, drippers or immiters are mounted directly or by means of fittings. “OM” LLDPE tubings are available in all sizes i.e. 12mm., 16mm., 20mm., 25mm., & 32mm. Classification of Pipe “OM” LLDPE tubings are classified by pressure rating (working pressure) at 27’C as per IS-

View More Details

Send Enquiry

Company Information

Om Irritech Ltd

Rajputpara, Rajkot, Gujarat

View Number

Member Since 16 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Class of Pipe				Working Pressure
Class I				0.20 MPa.
Class II				0.25 MPa.
Dimension of “OM” LLDPE pipes
Outside Diameter	Class 1				Class 2
	(0.20 MPs.)				(0.25 MPs.)
	Min.		Max.		Min.		Max.
12	0.6		0.8		0.9		1.1
16	0.8		1		1.1		1.3
20	0.9		1.1		1.3		1.4
25	1.2		1.6		1.7		2
32	1.5		1.9		2		2.4
Physical Properties:-
Property		Value				Unit
Tensile Strength		12.5				MPA
Elongation		500				%
Carbon Black Content		2.5 (+-0.5)				%
Carbon Black Dispersion		Satisfactory				—
ESCR		O.K.				—
