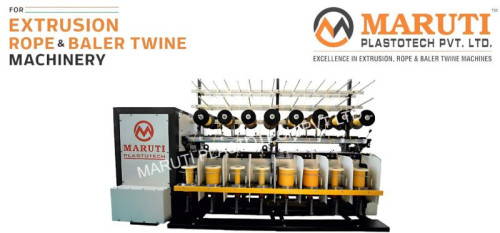

Maruti Plastotech Automatic Online/Offline Ring Twister Machine, Certification : ISO 9001:2008 Certfied

Listing ID #6763098

2.50 Lakh - 1 Cr / Units

Get Latest Price

MOQ 1 Units
TypeTwisting Machine, Machinery
CertificationISO 9001:2008 Certfied
ColorBlack & White
ConditionNew
Supply Type Exporter

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Type Twisting Machine, Machinery
Certification ISO 9001:2008 Certfied
Color Black & White
Condition New
Automatic Grade Semi Automatic
Warranty 5years
Driven Pneumatic
Country of Origin India
Brand Name Maruti Plastotech
Machine Type Automatic
Feature Excellent Finished, Fine Quality, Longer Life, Quality Tested, Superb Design

Key Features

Touch screen display with PLC system
Twist type and RPM can be controlled by touch screen display
Timing belt is used for transmission of power
AC frequency drive is used
By using touch screen display, adjustment of winding tension can be done
High production and efficiency with easy operation and less time
Quality of twisting is very high and Counter balancing is uniform
Less noisy and consumption of power is less
Speed of machine is high and precision is more
The heavy duty structure is used with complete powder coated
High quality with very easy operation and High speed machine
Thread Traversing : Fixed on cross rail
Separator : Full length separator made from Stainless Steel
Spindle : Heavy duty dynamically balanced with suitable high inserts
Rings & Lubrication : S.L. Ring mounted on aluminum ring holder cotinnuously provided with lubricating oil

RING TWISTER (HEAVY DUTY)
NO. OF SPINDLES	144, 120, 64, 60, 48, 40, 32, 24, 16
SPINDLE GAUGE	8", 9", 12", 14"
RING DIA	5.5", 6.5", 8.5", 10", 11.25"
RING HEIGHT	1", 1.5"
SPINDLE SPEED	5000, 4000, 3500, 2800, 2000 RPM Max.
LIFT	12", 12", 12" Or 14", 12" Or 14"
DENIER RANGE (Max.)	5000 – 35000
DENIER RANGE (Min.)	840 – 5000
POWER	13 - 22.3 Kw

Additional Information

Payment Terms T/T
Port of Dispatch Mundra
Delivery Time Few Months

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Video

Product Images

Company Details

We as MARUTI PLASTOTECH manufacture different types of machines and our product range is as below:
Rope Making Machines from 2mm up-to 46mm
Inflow Twisters Machines for Baler Twines
Ring Twisters for Fishing Twines
Extrusion Plants
Cheese Winder Machines
Fibrillated Units for extrusion plants
Rope Coiling Machines
Bobbin Winder Machines
Ply Yarn Twister Machines
Plastic West Roll Cutting Machines
Hank Machines
Ball Making Machines For Ropes & many more
