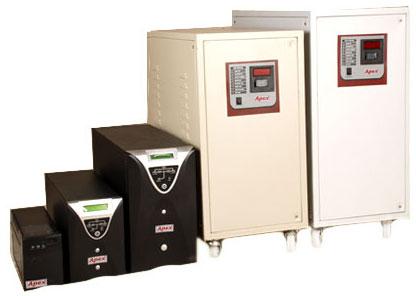

Online UPS System

Get Latest Price

Back up TimeAs per Customer Requirement
Temperature0-45°C
IndicationsMains On, Inverter On, Out Put Normal, Mains Fail, Battery Low, Overload, Over Voltage, UPS Trip
ProtectionAdvanced electronic protection for device safety backed up with with MCBs and fast acting fuses. High Speed pulse balancing electronic high current trip with reset
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Apex Powelec

Nandanam, Chennai, Tamil Nadu

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Metering Input Voltage, Output Voltage, DC Voltage, Output Frequency (other Functions Optional)
AlarmsAudible alarm for low battery/mains failure
TopologyOnline double conversion
Back up TimeAs per Customer Requirement
CabinetPowder coated MS Box with wheels
Temperature0-45°C
ProtectionAdvanced electronic protection for device safety backed up with with MCBs and fast acting fuses. High Speed pulse balancing electronic high current trip with reset
CoolingForced Air
Noise LevelLess then 55 dba
Crest FactorBetter than 3:1
IndicationsMains On, Inverter On, Out Put Normal, Mains Fail, Battery Low, Overload, Over Voltage, UPS Trip

Apex Online UPS are designed for those applications which need maximum protection in the 1KVA – 100 KVA range. With its high frequency Double conversion Online topology, providing non-stop clean sine wave power Solution less than 3% THD i.e the ideal Power Solution for networks, Web servers, Telecom application and other critical electronic equipments.

The Apex Online UPS Systems are the best-in-class Power Solution for maximum system availability, and peace of mind.

SPECIAL FEATURES

True Online Double Conversion UPS
High Performance & High Efficiency>93%
Ensures Reliability Through Design
SAMEER and ETDC Certified
Prompt and efficient after sales support
Pure Sine Wave Output
Spikes, RFI, EMI protected
Extended Battery Back-up
Compact size & noise free
Wide input range
High frequency PWM design
IGBT based digital Inverter
RS 232 COM port (Optional)
Proven Design for more than a decade
Manual By-Pass/ (Optional) Static By-Pass
Digital Display (LCD/LED)
Cold Start
Wide Service Network.
Lightning and Surge Protection

Capacity

1KVA-10KVA

10KVA-40KVA

10KVA-100KVA

CHARGER
Primary	230V+15%-25%	400V+-20%	400V+-20%
Voltage	1Ø 3wire	3Ø 4wire	3Ø 4wire
Frequency	50Hz+/-5Hz	50Hz+/-5Hz	50Hz+/-5Hz
Rectifier	Full Controlled automatic float cum boost charger
Power Factor	>0.95 with Harmonic Suppression
DC Voltage	36-180 V	240/360 V	360/384 V

INVERTER
O/P Voltage	230V+/-1%1Ø	230V+/-1%1Ø	400V+/-1%3Ø
Waveform		Pure sine
Efficiency		>93%
Distortions	THD less then 3% for 100% linear loads
Control	DSP/ Micro Processor based/Digital
Power Device	IGBT (Insulated Gate Bipolar Transistor) MOSFET
O/P Frequency	5Hz+/-0.5%
Output Power Factor	0.8 Lag to unity
Overload Capacity Inverter 105% continues 125% for 10 Min150% for 1 Min
